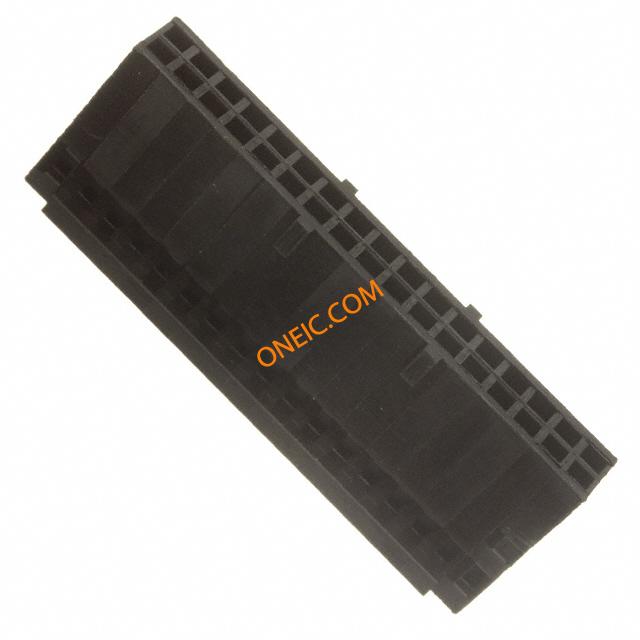

3-87631-0

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 34POS .100 POL DUAL Headers & Wire Housings MOD IV DUAL ROW 34P Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 34Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 2.54MM Housing,Connector;Crimp-Snap;Dual;34;250VAC;3A;750V 34 MODIV HSG DR MRKD .100 POL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULE28476,CSALR7189,RoHSCompliant,ELVCompliant
海关税号	85366910

电气参数

额定电压	250 V	开关功能	Detent Latching
击穿电压	750V	最大额定电流	3 A
绝缘电阻	5000Megohms

机械参数

颜色	Black	间距	2.54 mm
重量	0.003	包装方式	Bulk
导线线规	20-30 AWG	排间距	0.100" (2.54mm)
端接方式	CrimpSnap-In	触头类型	Female Socket
极化	Yes	安装类型	Straight
行程角度	Straight	连接器类型	Receptacle
接触镀层	:-	紧固类型	Locking Ramp
排数	2	触头材料	Phosphor Bronze
壳体材料	Nylon	总长度	1.7"
主要材料	InterconnectSystem	连接器 - 电缆	Yes
插针孔直径	0.1"	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	34
接触件端接	Crimp	绝缘直径	0.069or0.046"
位数	34

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Receptacles / Sockets - Housings
应用细节	Board to Board	矩阵（列×行）	0.100x0.100in.
有铅工艺兼容	:Yes

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

580372.pdf

在线文档

3-87631-0?RQPN=3-87631-0
