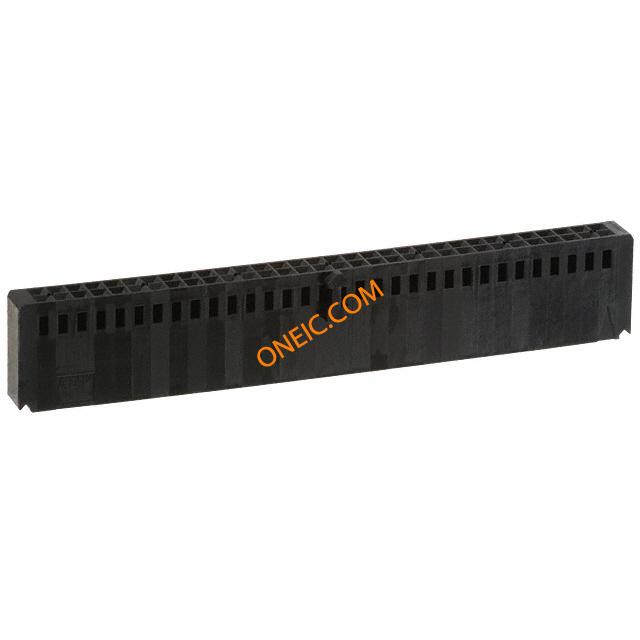

点击放大查看
1-102387-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 64 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 64POS .100 POL DUAL Headers & Wire Housings 64P MODIV HOUSING Conn Housing RCP 64 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 64Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR HOUSING, RECEPTACLE 64POS, 2.54MM RECEPTACLE,AMPMODU,MODIV,64POSITION,.100IN,DUALROW,LATCHED TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 64 路 直 母 电缆安装 PCB 连接器外壳 64 MODIV HSG COMP DR .100 POL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | ULListed,CSACertified,RoHSCompliant,ELVCompliant |
| 海关税号 | 85366910 | 认证机构 | CSA,UL |
电气参数
| 额定电压 | 250 VAC | 击穿电压 | 750V |
| 最大额定电流 | 3 A | 绝缘电阻 | 5000Megohms |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 7.23 mm |
| 重量 | 0.009 | 包装方式 | Bulk |
| 导线线规 | 20-32 | 排间距 | 0.100" (2.54mm) |
| 端接方式 | 12Milliohms | 触头类型 | Female Socket |
| 极化 | Yes | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Receptacle | 排数 | 2 |
| 壳体材料 | Thermoplastic | 总长度 | 85.85 mm |
| 主要材料 | InterconnectSystem | 连接器 - 电缆 | No |
| 插针孔直径 | 0.1" | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 64 |
| 接触件端接 | Crimp | 位数 | 64 |
| 端子柱长度 | Crimp | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Receptacle Housing |
| 连接器性别 | RCP | 系列 | AMPMODU MOD IV |
| 产品特性 | Polarizing Key | 制造商全称 | AMPMODU/MODIVSeries |
| 产品子类型 | Connectors | 应用细节 | Board-to-Board |
| 矩阵（列×行） | 0.100x0.100 | 适用产品/相关产品 | :Ampmodu Socket Contacts |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
