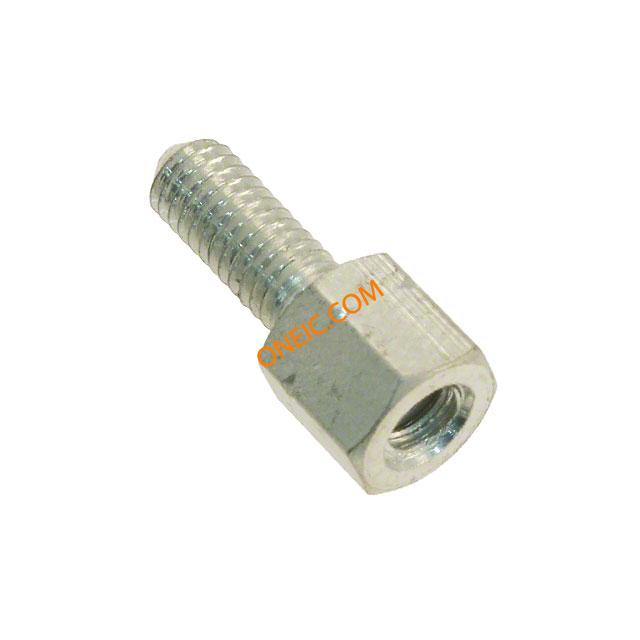

829261-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Female Screw Locks Brass Tin Yellow Chromate Finish Individual D-Sub Tools & Hardware HD FEMALE SCREWLOCK Hardware (AMPLIMITE) CONN D-SUB HD FEMALE SCREW LOCK AMPLIMITE HD screwlock 4-40, M3, 7.9mm Connector Accessories Female Screw Locks Brass Tin Yellow Chromate Finish Individual Product Highlights:Female Screw LocksTin Body FinishThread Size = M3Thread Length = 7.90 mmScrewlock Style = Screwlock OnlySearch Keywords:Subminiature D, SCREW, 7.9MM, UNC4-40 / M3 AMPLIMITEHDscrewlock4-40,M3,7.9mm TE Connectivity 连接器螺钉 HD FEMALE SCREWLOCK |
| 分类 |
商业参数
| 产品 | Hardware | 其他名称 | 8292616 |
| 产品类别 | D-Sub Tools & Hardware | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
机械参数
| 深度 | 5 mm | 长度 | :12.75mm |
| 重量 | 0.098 | 包装方式 | Individual |
| 螺纹尺寸 | M3 | 螺钉表面处理 | Yellow Chromate |
| 基体材料 | Brass | 螺纹长度 | 7.90 [0.311] |
| 壳体镀层 | :Tin | 螺丝材料 | Brass |
| 总长度 | 12.75 mm | 包装数量 | Individual |
| 外壳尺寸-插件 | :- | 螺纹/螺钉/孔尺寸 | :M3 |
| 螺钉材料 - 镀层 | Tin | 头部以下螺纹长度 | 0.310" (7.90mm) |
产品信息
| 备注 | For Rear Panel Mount. | 类型 | Screw Lock |
| 样式 | Screwlock Only | 连接器性别 | Female |
| 系列 | :AMPLIMITE | 制造商全称 | AMP |
| 产品子类型 | Female Screw Locks | 附件类型 | Jackscrew Socket |
| 射频系列/标准 | 829261 | 适用产品/相关产品 | D-Sub Connectors Series AMPLIMITE HD |
