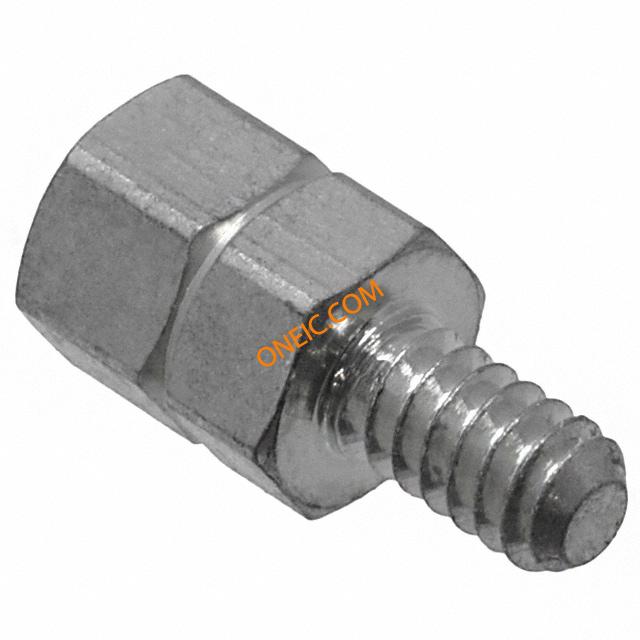

828102-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Female Screw Lock Brass Tin Individual D-Sub Tools & Hardware HD-20SCHRAUB-SICHRG Hardware (AMPLIMITE) CONN D-SUB FEMALE SCREW LOCK AMPLIMITE HD-20 screwlock 4-40, 5mm Connector Accessories Female Screw Lock Brass Tin Individual Product Highlights:Female Screw LocksTin Plated Body FinishThread Size = 4-40Thread Length = 5.00 mmScrewlock Style = Screwlock OnlySearch Keywords:Subminiature D, SCREW, 5MM, UNC4-40 / UNC4-40 Connector,screwlock,4-40x4-40UNC Screw Lock, 828102-1, TE Connectivity TE Connectivity 连接器螺钉 HD-20SCHRAUB-SICHRG |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
机械参数
| 深度 | 5 mm | 长度 | :11.2mm |
| 重量 | 0.002 | 包装方式 | Individual |
| 螺纹尺寸 | 4-40 | 基体材料 | Brass |
| 螺纹长度 | 5.00 [0.197] | 壳体镀层 | :Tin |
| 总长度 | 11.2 mm | 包装数量 | Individual |
| 外壳尺寸-插件 | :- | 螺纹/螺钉/孔尺寸 | :- |
| 头部以下螺纹长度 | 0.197" (5.00mm) | ||
产品信息
| 备注 | For Front Panel Mount. | 类型 | Screw Lock |
| 样式 | Screwlock Only | 连接器性别 | :Socket |
| 系列 | :AMPLIMITE | 制造商全称 | AMP |
| 产品子类型 | Female Screw Locks | 附件类型 | Jackscrew Socket |
| 射频系列/标准 | 828102 | 适用产品/相关产品 | D-Sub Front Panel Mount Connectors |
