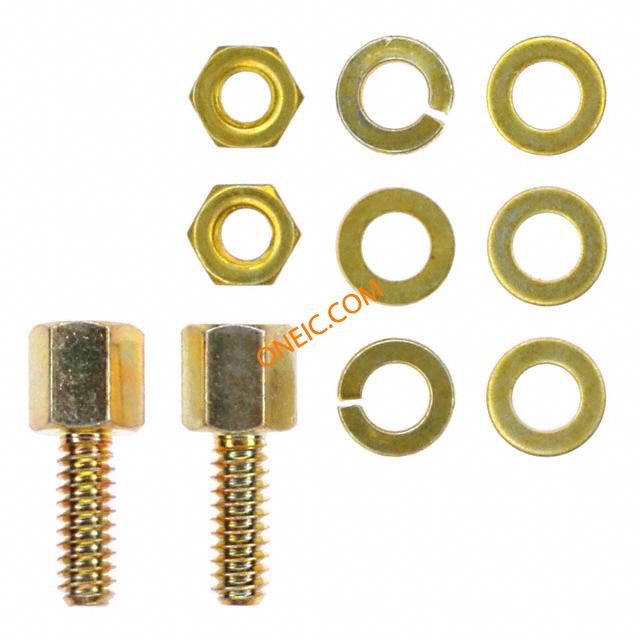

5205817-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Female Screw Lock Assembly Kit Steel Yellow Chromate Finish Individual Kit KIT SCREWLOCK FEMALE Hardware (AMPLIMITE) CONN SCREWLOCK FEMALE 2 SETS/BAG AMPLIMITE HDP,HDF screwlock kit 4-40 D-Sub Tools & Hardware MNT'G KIT Connector Accessories Female Screw Lock Assembly Kit Steel Yellow Chromate Finish Individual Kit Product Highlights:Female Screwlock Assembly KitYellow Chromate Body FinishThread Size = 4-40Thread Length = 7.92 mmScrew Length = 12.70 mmSearch Keywords:Subminiature D, SCREWLOCK KIT, 4-40 UNC, 7.92MM AMPLIMITEFemaleScrewLockw/LockwasherandHexNut,4-40Thread,YellowChromate Female Screwlock Kit Threaded bolt, 5205817-1, TE Connectivity TE Connectivity Series HDF, Series HDP 系列 连接器螺钉 |
| 分类 |
商业参数
| 产品 | Hardware | 产品类别 | D-Sub Tools & Hardware |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
机械参数
| 深度 | 4.74 mm | 表面处理 | YellowChromate |
| 重量 | 0.002 | 包装方式 | Individual Kit |
| 螺纹尺寸 | 4-40 | 螺钉表面处理 | Yellow Chromate |
| 螺纹长度 | 7.92 [0.312] | 封装形式 | Kit |
| 螺丝材料 | Steel | 内部长度 | 12.70 [0.500] |
| 总长度 | 12.7 mm | 包装数量 | Individual Kit |
| 外壳尺寸-插件 | :- | 螺纹/螺钉/孔尺寸 | :- |
| 螺钉材料 - 镀层 | Zinc | 头部以下螺纹长度 | 0.312" (7.92mm) |
产品信息
| 备注 | All parts are packaged unassembled.; Short female screwlocks cannot be used wit | 类型 | Female Screw Lock Assembly Kit |
| 样式 | Screwlock With Lockwasher and Hex Nut | 连接器性别 | Female |
| 系列 | :AMPLIMITE | 产品特性 | Hardware Included |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | Female Screwlock Assembly Kit | 附件类型 | Jackscrew Socket |
| 射频系列/标准 | 5205817 | 适用产品/相关产品 | Metal Shell or All Plastic Connectors (HDP or HDF) |
