点击放大查看

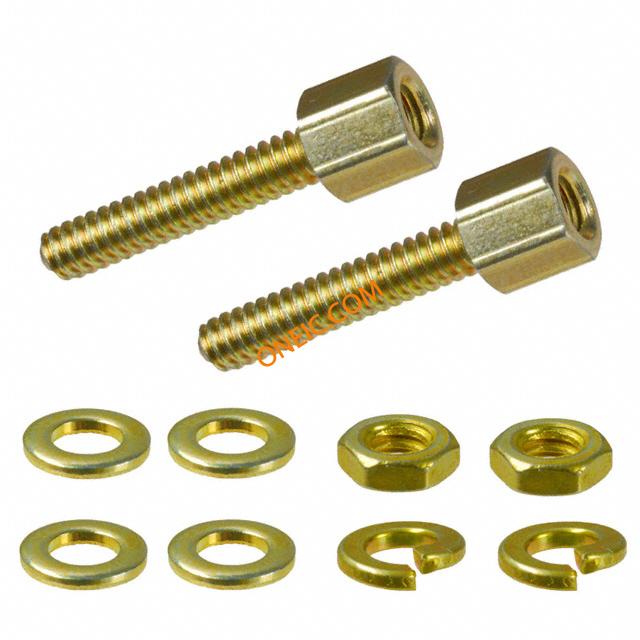

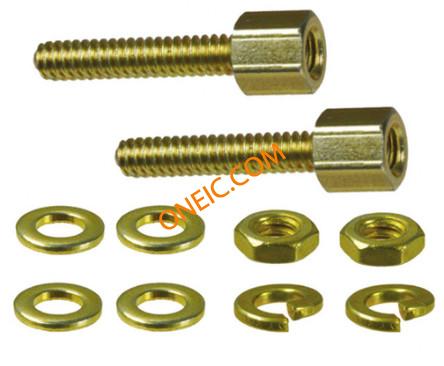

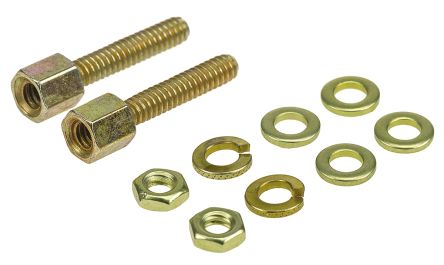

5207719-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Female Screw Lock Individual D-Sub Tools & Hardware KIT SCREW LOCK FEM Hardware (AMPLIMITE) CONN SCREWLOCK FEMALE 2 SETS/BAG AMPLIMITE HD,HDF screwlock kit 4-40 Connector Accessories Female Screw Lock Individual Product Highlights:Female Screwlock Assembly KitYellow Chromate Body FinishThread Size = 4-40Thread Length = 14.22 mmScrew Length = 18.99 mmSearch Keywords:Subminiature D, SCREWLOCK, FEMALE, LONG AMPLIMITEFemaleScrewLocksw/Lockwasher&HexNut,4-40Thread,YellowChromate Set of screws for D-SUB; UNC4-40; Thread len:14mm TE Connectivity Series HD, Series HDF 系列 连接器螺钉 KIT SCREWLOCK FEMALE |
| 分类 |
商业参数
| 产品 | Hardware | 产品类别 | D-Sub Tools & Hardware |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
机械参数
| 深度 | 4.74 mm | 表面处理 | YellowChromate |
| 长度 | :18.99mm | 重量 | 0.004 |
| 包装方式 | Bulk | 螺纹尺寸 | 4-40 UNC |
| 螺钉表面处理 | Yellow Chromate | 螺纹长度 | 14.22 [0.560] |
| 封装形式 | Assembly | 螺丝材料 | Cold Rolled Steel |
| 连接器用途 | set of screws for D-SUB | 内部长度 | 18.99 [0.748] |
| 总长度 | 18.99 mm | 包装数量 | Individual Kit |
| 外壳尺寸-插件 | :- | 螺纹/螺钉/孔尺寸 | :- |
| 螺钉材料 - 镀层 | Zinc | 头部以下螺纹长度 | 0.560" (14.22mm) |
产品信息
| SPG | 1 | 备注 | All parts are packaged unassembled.; Female screwlocks mate with male screw ret |
| 类型 | Screw | 样式 | Screwlock With Lockwasher and Hex Nut |
| 连接器性别 | Female | 系列 | :AMPLIMITE |
| 产品特性 | Hardware Included | 制造商全称 | AMP |
| 产品子类型 | Female Screwlock Assembly Kit | 附件类型 | Jackscrew Socket |
| 单元数量 | 1 | 射频系列/标准 | 5207719 |
| 适用产品/相关产品 | All Plastic Connectors with Integral Standoffs (HD or HDF) | ||
