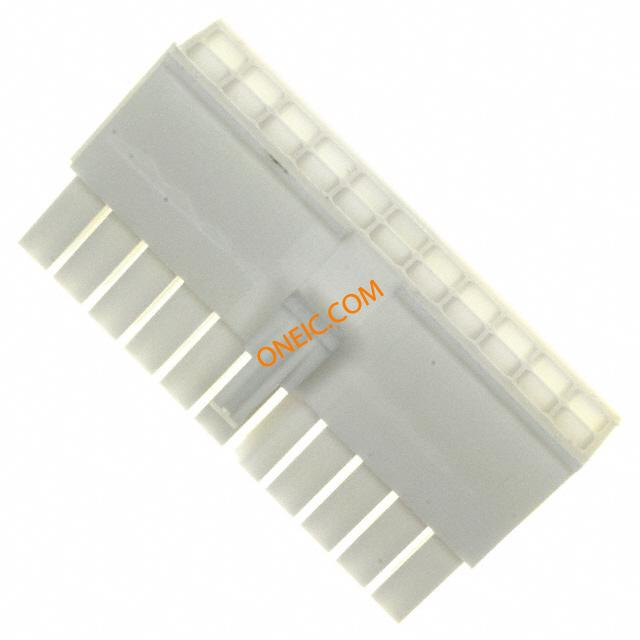

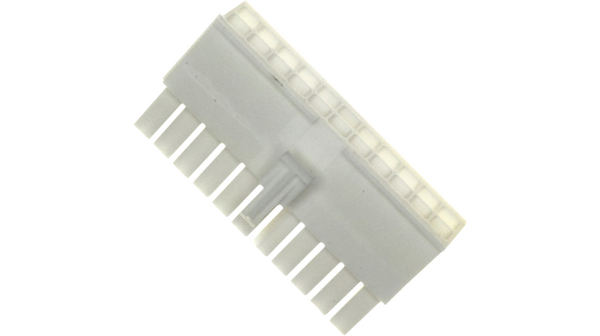

770586-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing M 22 POS 4.14mm Crimp ST Cable Mount Individual Pin & Socket Connectors 22P MINI UMNL PLUG H .163" Centerline, 600 V, 9.5 A max. CONN PLUG 22POS MINI UNIV-MATE Housing,plug,mini Mate-n-lok,2 row,22Way Conn Housing M 22 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 224.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR PLUG & SOCKET MINI-UMNLPLGHSG,22PMINIUMNLPLUGHSG Pin housing Pitch4.14 mm Poles 2 x 11 Double row / accepts male or female contacts / straight MATE-N-LOK Mini Universal, 770586-1, TE Connectivity 22P MINI UMNL PLUG HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VDC/600VAC |
| 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK | ||
机械参数
| 颜色 | White | 深度 | 23.83mm |
| 间距 | 4.14 mm | 宽度 | 15.19mm |
| 高度 | 15.19 mm | 长度 | 47.24mm |
| 重量 | 0.005 | 锁定类型 | Positive Lock |
| 包装方式 | Bulk | 导线线规 | 16-30 AWG |
| 排间距 | 0.163" (4.14mm) | 触头类型 | Male or Female |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 2 |
| 触头材料 | :Brass | 壳体材料 | Polyamide (PA) |
| 总长度 | 47.24 mm | 包装数量 | One Piece Housing |
| 主要材料 | InterconnectSystem | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :White |
| 触点数 | 22 | 接触件端接 | Crimp |
| 位数 | 22 | 中心触点材料 | 4.14 x 4.14 [.163 x .163] |
| 典型触点布局 | Double-Row | 接触镀层厚度 | 0.99 [0.039] |
| 线规或范围 - AWG | 30-16 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | M | 系列 | Mate-N-Lok |
| CAD图纸 | 3D CAD Model | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Receptacle Housings | 模块/板类型 | No |
| 电路数 | 22 | 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
1-770834-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors MINI UMNL SOK PHBRZ .163" Centerline, 600 V, 9.5 A max. Product Highlights:ContactMini-Universal MATE-N-LOKSocketPackaging Method = Loose PieceWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK PHBRZ AU LF
770834-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors SKT 30-26 AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接触点, 压接, 镀预镀锡触点 MINI UMNL SOCKET SN
794078-1
te connectivity / amp
Conn Power PIN 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 22POS DL VERT TIN Power to the Board 22P MINI UMNL HDR W/ 400 .163" Centerline, 600 V, 9.5 A max. Product Highlights:ConnectorHeaderConnector Style = PlugContact Type = PinThrough Hole Contact Termination TypeSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-794071-0
te connectivity / amp
Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 22POS STR DUAL .163 TIN Headers & Wire Housings HEADER 22 POS TIN DUAL ROW Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 224.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 22P MINI UMNL HDR W/DH SN LF
1-794107-0
te connectivity / amp
Conn Power HDR 22 POS 4.14mm Solder RA Thru-Hole 22 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 22POS R/A DUAL .163 TIN Headers & Wire Housings HEADER 22 POS R/A TIN DUAL ROW Conn Power HDR 22 POS 4.14mm Solder RA Thru-Hole 22 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 224.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Mini-Universal MATE-N-LOK 22 Position Dual Row Through-Hole Right Angle Header 22P MINI UMNL R/A HDR ASSY LF
1-794071-1
te connectivity / amp
Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 22POS STR DUAL .163 AU Headers & Wire Housings HEADER 22 POS GOLD DUAL ROW Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 22 Position Dual Row 4.14 mm Through Hole Vertical Plug Header 22P MINI UMNL HDR W/DH AU LF
794107-2
te connectivity / amp
Conn Power PIN 22 POS 4.14mm Solder RA Thru-Hole 22 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 22POS R/A M-UMNL AU Pin & Socket Connectors 22P MINI UMNL R/A HDR ASSY AU 22P MINI UMNL R/A HDR ASSY AU 22P MINI UMNL R/A HDR ASSY AU Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP

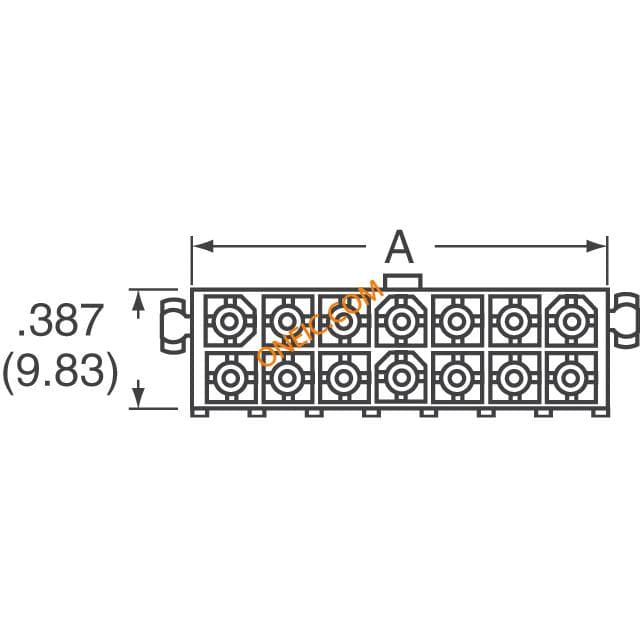

794071-1
te connectivity / amp
Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 22POS STR DUAL .163 TIN Power to the Board 22P MINI UMNL HDR W/ 400 Mini-Universal MATE-N-LOK 22 Position Through-Hole Dual Row Straight Pin Header 22P MINI UMNL HDR W/DH SN
794071-2
te connectivity / amp
Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port Pin & Socket Connectors 22P MINI UMNL HDR W/ DH AU .163" Centerline, 600 V, 9.5 A max. CONN HDR 22POS STR DUAL .163 AU Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-770903-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG GOLD CRIMP Mate-n-lok,contact,pin,0.30-0.90mm² Power to the Board SKT 22-18 AWG REEL Reel of 4500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 22-18AWG, CRIMP MINI-UMNLSTRIP,MINIUMNLPIN22-18AWGAU MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀金镀镍触点 MINI UMNL PIN 22-18 AWG AU
770902-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 22-26AWG GOLD CRIMP Pin & Socket Connectors SOCKET 26-22 REEL 21000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK 26-22 AWG AU

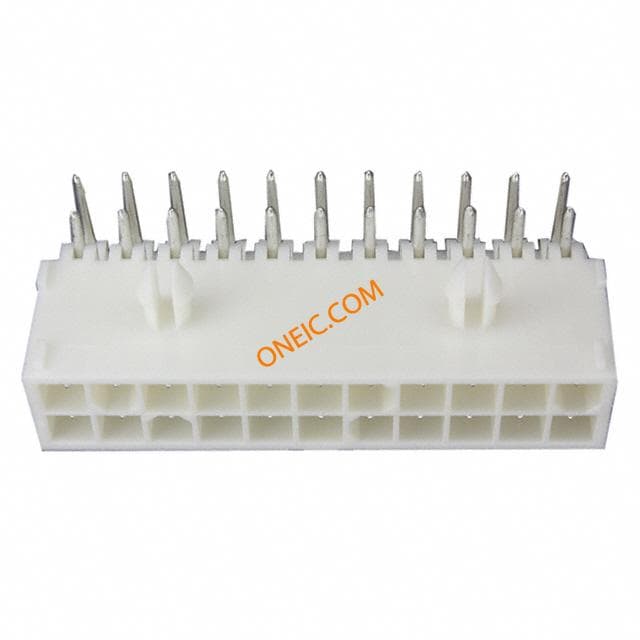

794107-1
