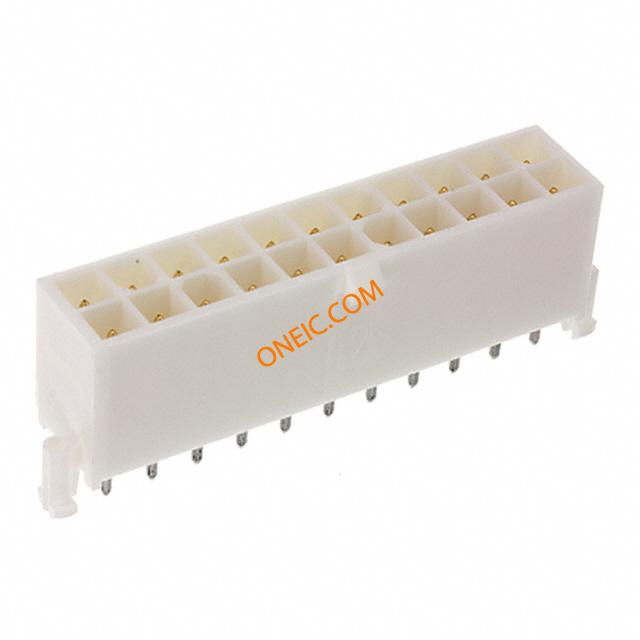

794071-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port Pin & Socket Connectors 22P MINI UMNL HDR W/ DH AU .163" Centerline, 600 V, 9.5 A max. CONN HDR 22POS STR DUAL .163 AU Conn Power HDR 22 POS 4.14mm Solder ST Thru-Hole 22 Terminal 1 Port Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | ||
电气参数
| 最大额定电流 | 9.5/Contact A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 间距 | 4.14 mm |
| 高度 | 14.25 mm | 包装方式 | Bulk |
| 排间距 | 0.163" (4.14mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon | 触点数 | 22 |
| 位数 | 22 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 产品特性 | Board Lock | 产品子类型 | Receptacle Housings |
| 端口数 | 1 Port | 加载位置数 | All |
