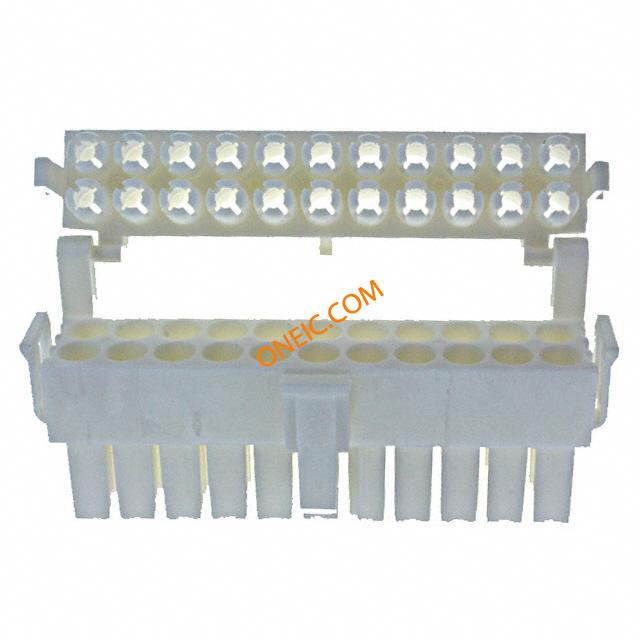

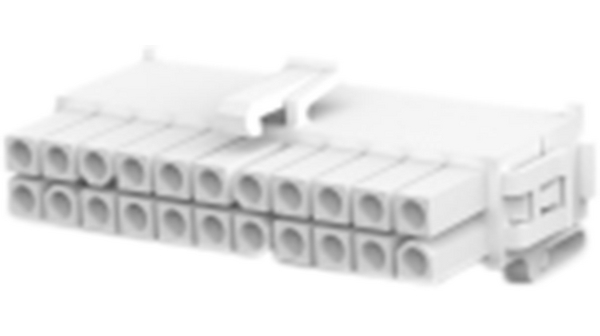

794212-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 22 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 22POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN PLUG 22 POS Conn Housing PL 22 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 224.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 2 x 11 MATE-N-LOK II Mini Universal, 794212-1, TE Connectivity 22P MINI UMNL2 PLUG HSG UL94V0 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 V | 极数 | 2 x 11 |
| 供电电压 | 600 | 最大额定电流 | 9.5 A |
| 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK 2 | ||
机械参数
| 颜色 | White | 间距 | 4.14 mm |
| 密封型 | Not Sealed | 锁定类型 | Latch |
| 包装方式 | Bulk | 排间距 | 0.163" (4.14mm) |
| 触头类型 | Male or Female | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 封装形式 | Plug |
| 壳体材料 | Nylon | 包装数量 | One Piece Housing |
| 面板安装类型 | 不带 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 22 |
| 接触件端接 | Crimp | 位数 | 22 |
| 兼容外壳尺寸（如TM-700等） | 印刷电路板板端连接器头 | 中心触点材料 | 4.14 x 4.14 [.163 x .163] |
| 典型触点布局 | Double-Row | 接触镀层厚度 | 0.99 [0.039] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Mate-N-Lok II |
| 产品子类型 | Housing | 连接方式 | Wire-Wire |
| 电路数 | 22 | 装配配置 | Without |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55...+105 °C |
文档与媒体
相关型号

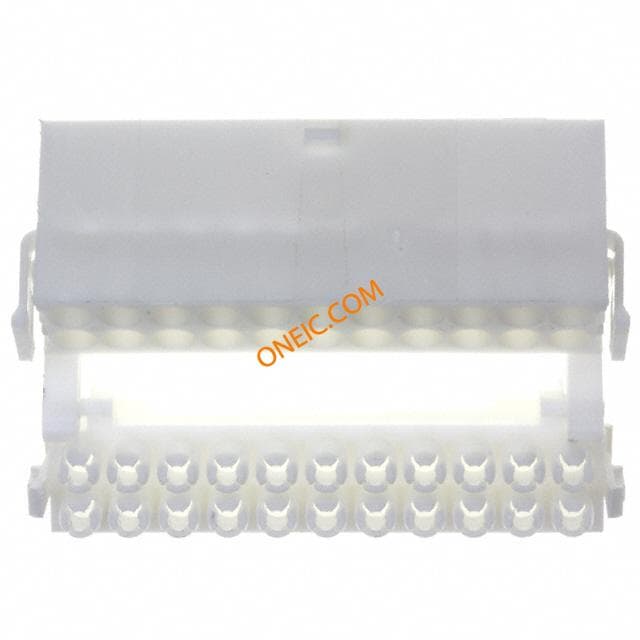

794213-1
