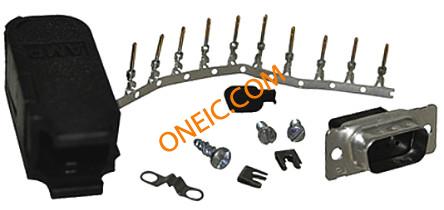

749808-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Bulk D-Sub Standard Connectors KIT PLUG 9P HDP-20 KIT PLUG 9P HDP-20 Standard Cable Connectors CONN D-SUB PLUG 9POS CRIMP Conn,D-Sub,CablePlug,9Pos,STR,HDP-20S 749808-8 Conn D-Subminiature PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Bulk Product Highlights:Cable Connector and ClampProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9Not ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CablePlug;9Pos;STR;HDP-20Series;CrimpSnap;24-20AWG;UnshieldedKit KIT,PLUG,9P,HDP-20 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | ULRecognized,ULListedandCSACertified |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250V | 连接器阻抗 | 压接 |
| 最大额定电流 | Varies by Wire Gauge | ||
机械参数
| 颜色 | Black | 外形尺寸(长x宽) | 1 |
| 材料（通用） | Stainless Steel | 包装方式 | Bulk |
| 屏蔽 | 否 | 壳体颜色 | 黑色 |
| 出线方向 | Straight(180°) | 外壳尺寸 | 1 |
| 导线线规 | 24-20 | 屏蔽类型 | No |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Signal | 外壳表面处理 | 铜镀锡 |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 端子尺寸 | 20 | 行程角度 | Straight |
| 电缆材料 | Polypropylene | 连接器类型 | Crimp Snap |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 排数 | 2 | 螺丝材料 | Steel |
| 外壳材料（壳体） | Steel | 绑带材料 | Stainless Steel |
| 连接器样式 | D-Sub | 插入件材料 | Nylon |
| 锁定特性 | Mounting Screws, Retainer Clip | 触头材料 | Brass |
| 壳体材料 | Nylon, Polyester GF | 包装数量 | Bulk |
| 主要材料 | D-Subminiature | 电缆端接方式 | One-Piece Quick Snap |
| 接地凹痕 | With | 端接样式 | Crimp |
| 触点数 | 9 | 绝缘直径 | 1.91 â 6.35 [0.075 â 0.250] |
| 位数 | 9 | 外壳尺寸-插件 | Full Metal Shell |
| 衬套/护套类型 | Without | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | Flash | 螺钉材料 - 镀层 | Zinc |
| 外部壳体材料 | Polypropylene | 线规或范围 - AWG | 0.2 - 0.56 [24-20] |
| 触点材料 - 镀层 | 尼龙 GF | 控制侧电缆固定器 | With |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 类型 | CablePlug | 等级 | Standard |
| 连接器性别 | Male | 系列 | HDP-20 |
| 产品特性 | Backshell (Dual Exit), Grounding Indents, Strain Relief, Retaining Hardware | 制造商全称 | AMP |
| 产品子类型 | Cable Connector and Clamp | 其他规格 | 1.91 – 6.35 mm [ .075 – .25 in ] |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
