点击放大查看

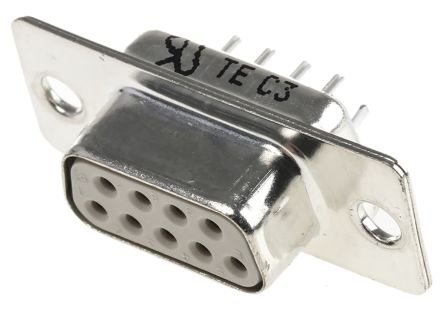

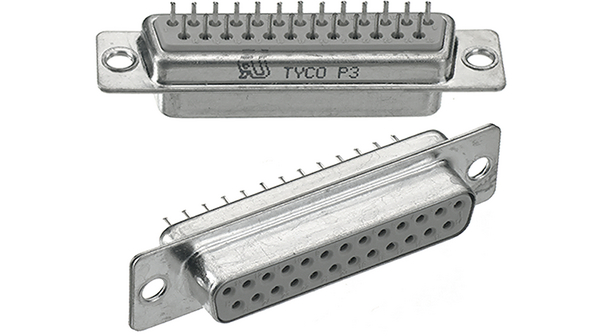

8-1393483-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Standard Board Mount Connectors CONN RCPT D-SUB 9POS VERT GOLD AMPLIMITE HD-20 d-sub cable socket,9 way AMPLIMITEHD-20d-subcablesocket,9way D-Sub socket 9P, 8-1393483-7, TE Connectivity TE Connectivity 通孔 DB9 9 路 焊接 D-sub 连接器 插座 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 频率 | 2.74 | 接地方式 | Without |
| 电容 | 12.4 | 额定电压 | 125 |
| 极数 | 9 | 最大额定电流 | 3A |
机械参数
| 颜色 | Gray | 深度 | 12.93mm |
| 间距 | 2.74 mm | 宽度 | 12.6mm |
| 高度 | 12.6 mm | 长度 | 31.19mm |
| 密封型 | No | 包装方式 | Bulk |
| 壳体颜色 | 25 | 外壳尺寸 | 1 |
| 方向 | 直 | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | Without |
| 触点形状 | Round | 安装类型 | Through Hole |
| 外壳镀层 | Tin over Nickel | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Tin | 法兰特征 | Housing/Shell (Unthreaded) |
| 接地类型 | Without | 安装样式 | Thru Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.062 [1.57] | 连接器样式 | D-Sub |
| 插入件材料 | PBTP - Glass Fiber-Reinforced Thermoplastic | 触头材料 | Copper Alloy |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 总长度 | 31.19 mm |
| 面板安装类型 | Without | 尺寸/外形 | 0.70 [.028] |
| 接地凹痕 | Without | 连接器颜色 | None |
| 外径 | 10.98 | 触点数 | 9 |
| 位数 | 9 | 外壳尺寸-插件 | Full Metal |
| 第一连接器极性 | Female | 绝缘材料 - 材质 | PBT glass-fibre-reinforced |
| 外壳材料及表面处理 | Steel, Tin Plated | 端子柱长度 | 3.20 [0.126] |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 备注 | Connectors are preloaded with contacts. | 类型 | D-Subminiature |
| 连接器性别 | SKT | 系列 | HD 20 Type B - Solder Terminal |
| 制造商全称 | AMP | 放大器类型 | 30.8 |
| 端口数 | 1 Port | ||
环境参数
| 额定等级 | 2 (> 200 mating cycles) | 工作温度 | -55°C ~ 125°C |
