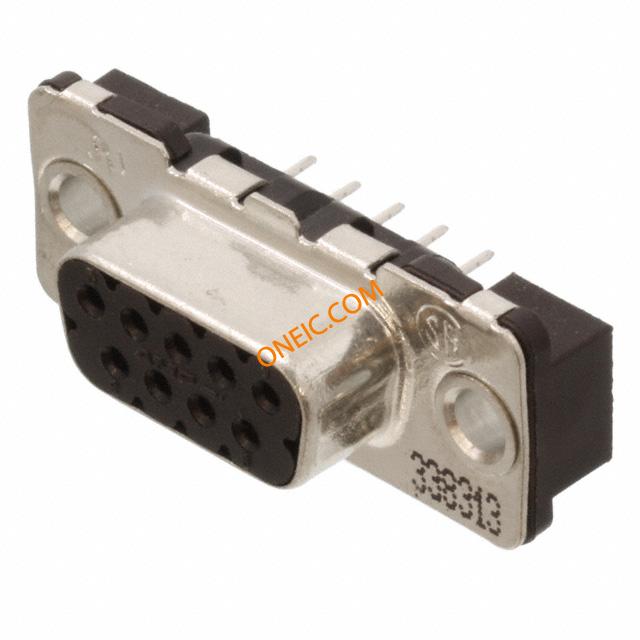

5-338313-2

点击放大查看

5-338313-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors 9POS.HD-20 REC.ASSY Standard Board Mount Connectors 9POS.HD-20 REC.ASSY Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = VerticalProduct Series = HDP-20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub SOCKET, D, B/L & 3.1MM, 9WAY D-Sub female 9P, 5-338313-2, TE Connectivity
分类
连接器解决方案D-Sub连接器D-Sub连接器

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量55

合规参数

RoHSRoHS Compliant海关税号85369010
抗辐射加固No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
认可国家DIN 41652RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

接地方式Without量程（°/s）:TE CONNECTIVITY - Amplimite HDP-20 Series
工作电压:250VAC最大额定电流6A

机械参数

颜色Black深度12.4 mm
间距2.74 mm高度12.1 mm
密封型No重量0.004
材料（通用）:Steel包装方式Tray
外壳尺寸1端接方式Solder
触头类型Signal第二连接器With
安装类型Through Hole外壳镀层Tin
连接器类型Receptacle, Female Sockets接触镀层Gold
法兰特征Housing/Shell (Unthreaded)接地类型Without
安装样式Through Hole排数2
外壳材料（壳体）Steel电路板厚度0.063 [1.60]
连接器样式D-Sub锁定特性Bushing with Through Hole
本体材料:Metal触头材料Phosphor Bronze
壳体材料Polyester GF总长度30.9 mm
面板安装类型Without接地凹痕Without
外形尺寸 长x宽x高5.99 [.236]端接样式Through Hole
连接器颜色None触点数9
接触件端接:Solder位数9
外壳尺寸-插件Full Metal绝缘材料 - 材质Steel
外壳材料及表面处理Steel, Tin Plated端子柱长度4.50 [0.177]
夹持材料 - 镀层Tin接触镀层厚度30µin (0.76µm)
外壳与棱镜材料:Steel外壳尺寸，连接器布局1 (DE, E)

产品信息

备注Connector has boardlocks which have to be clinched onto the PCB for a perfect g类型D-Subminiature
连接器性别SKT系列HDP-20
制造商全称AMP端口数1 Port

环境参数

工作范围Level 2工作温度-55°C ~ 105°C

文档与媒体

2-338313-2?RQPN=2-338313-2
5-338313-2?RQPN=5-338313-2
55259.pdf
