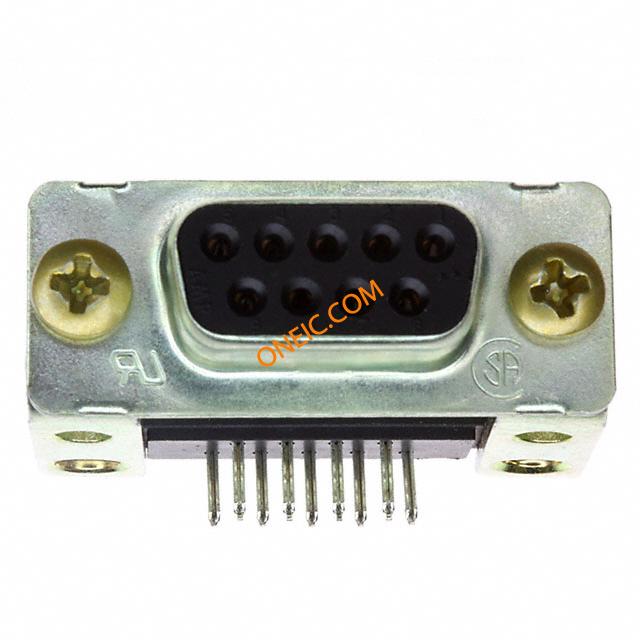

205866-1

点击放大查看

205866-1

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors HD-20 9P SOCKET 280 Standard Board Mount Connectors CONN D-SUB RECPT R/A 9POS PCB AU Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HDP-20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub
分类
连接器解决方案D-Sub连接器

商业参数

其他名称A1021产品类别D-Sub Standard Connectors
标准包装数量Trays工厂包装数量140

合规参数

RoHSNo抗辐射加固No
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态ELV compliant
材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A

机械参数

颜色Black深度26.24 mm
间距2.74 mm高度12.54 mm
密封型No包装方式Bulk
外壳尺寸1端接方式Solder
触头类型Signal第二连接器Without
触点形状Square安装类型Through Hole
外壳镀层Zinc连接器类型Receptacle, Female Sockets
接触镀层Gold法兰特征Mating Side; Standard Screws (4-40)
接地类型Without安装样式Through Hole
排数2外壳材料（壳体）Steel
电路板厚度0.062 [1.57]连接器样式D-Sub
外形（宽 x 高）Standard触头材料Phosphor Bronze
壳体材料Thermoplastic总长度30.81 mm
面板安装类型Without尺寸/外形0.64 [.025]
接地凹痕Without外形尺寸 长x宽x高13.84 [.545]
端接样式Through Hole连接器颜色None
触点数9位数9
外壳尺寸-插件Front Metal Shell安装孔直径3.05 [.120]
外壳材料及表面处理Steel, Yellow Chromate Plated Zinc端子柱长度3.18 [0.125]
接触镀层厚度Flash外壳尺寸，连接器布局1 (DE, E)

产品信息

类型D-Subminiature连接器性别SKT
系列HDP-20产品特性Mounting Brackets
制造商全称AMP端口数1 Port

环境参数

工作温度-55°C ~ 105°C

文档与媒体

在线文档
205866-1?RQPN=205866-1
