点击放大查看

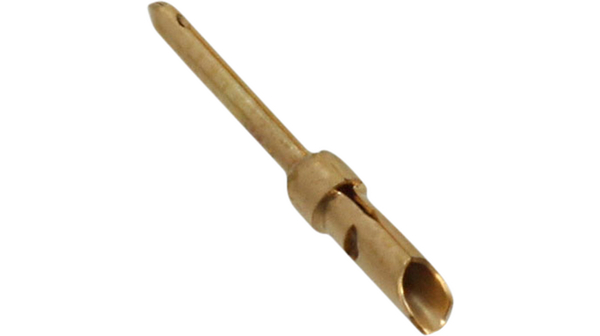

66570-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Solder Cup ST Cable Mount Loose Piece Standard Cable Connectors CONN PIN 18AWG SLD CUP GOLD AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Connector SOLDER PIN CNT 18 Contact PIN Solder Cup ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = SolderWire Range = 0.8 - 0.9 [18] mm² [AWG]Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CIRCULAR CONTACT, PIN, 18 AWG, SOLDER 20DFPINCONT.LP Contact; male; 0.9mm2; HDP-20; gold plated; soldering HDP-20 Series 18 AWG Non Insulation Crimp Snap Solder Pin Contact Crimp Contact 7.5 A, 66570-3, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 压接引脚连接器, 镀金镀镍 触点, 18 AWG 20DF PIN CONT. LP |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 3.7 A |
| 最小供电电压 | 250VAC | 连接器类型 - 电压输入 | for CPC connectors Series 2 |
机械参数
| 深度 | 2.15 mm | 间距 | Not Required mm |
| 重量 | 0.004 | 镀层 | Gold |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 导线线规 | 18 AWG | 端接方式 | Solder Cup |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 引脚直径 | 1.02 [0.040] | 安装类型 | Straight |
| 插针或插孔 | Pin | 外壳镀层 | Gold over Nickel |
| 连接器类型 | Connector D-Subminiature | 接触镀层 | Gold Over Palladium Nickel|Gold Over Nickel |
| 安装样式 | Wire | 封装形式 | size 20 |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 14.86 mm | 包装数量 | Loose Piece |
| 连接器 - 电缆 | contact | 绝缘高度 | No |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | Not Required | 接触件端接 | Crimp Snap-In |
| 镀层厚度（通用） | Flash | 线规或范围 - mm² | 0.8 - 0.9 [18] |
| 触点材料 - 镀层 | gold plated | ||
产品信息
| SPG | 10 | 类型 | Stamped |
| 等级 | Standard | 连接器性别 | PIN |
| 系列 | HDP-20 (Crimp Snap) | 产品子类型 | Contact |
| 适配器系列 | HDP-20 | 端口数 | 1 Port |
| 单元数量 | 1 | 适用/相关制造商 | CPC Connectors, AMPLIMITE HDP-20 |
环境参数
| 工作温度 | -55C to 105C | ||
