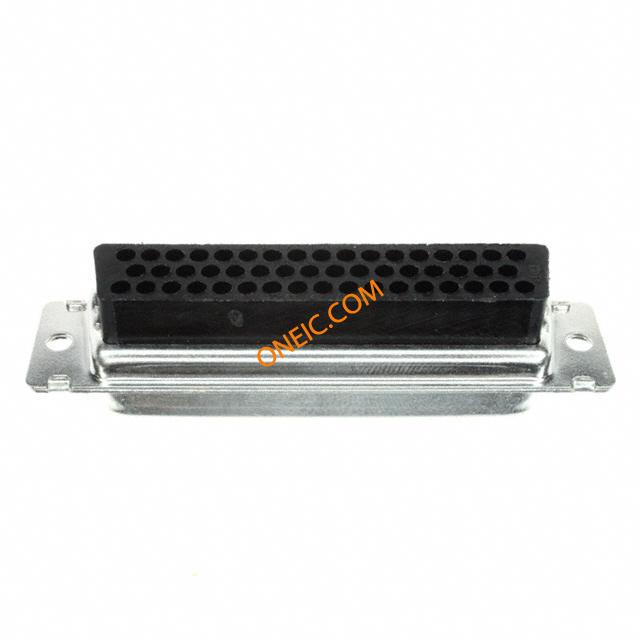

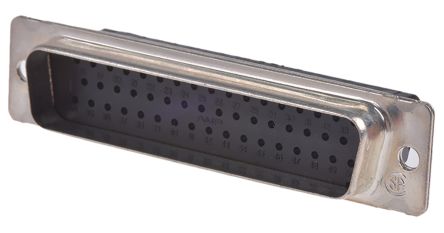

1658641-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PL 50 POS Crimp ST Cable Mount 50Terminal 1Port D-Sub Standard Connectors DSUB D50P CRIMP Standard Cable Connectors CONN D-SUB HOUSING PLUG 50POS Conn Housing PL 50 POS ST Conn Housing PL 50 POS ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 50PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, PLUG, SIZE 5, STEEL Conn;D-Sub;CablePlug;50Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 50路 直 压接式 D-sub 连接器, 插头 HDP-20,PLUG,SIZE 5, 50 POSN |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 450 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85366910 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 17.8 mm |
| 高度 | 10.82 mm | 重量 | 0.009 |
| 包装方式 | Bulk | 外壳尺寸 | 5 |
| 导线线规 | 18-28 | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 安装类型 | Cable Mount |
| 外壳镀层 | Tin | 行程角度 | Straight |
| 连接器类型 | Crimp Snap | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 3 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Holes |
| 本体材料 | :Metal | 壳体材料 | Steel |
| 总长度 | 66.92 mm | 主要材料 | D-Subminiature |
| 接地凹痕 | Without | 端接样式 | Crimp |
| 触点数 | 50 | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 50 | 外壳尺寸-插件 | Full Metal Shell |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 5 (DD, D) | ||
产品信息
| 备注 | Plugs accept size 20 DF pin contacts. | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | PL |
| 系列 | HDP-20 (Crimp Snap) | 制造商全称 | HDP-20 |
| 产品子类型 | Connector | 适用产品/相关产品 | :HDP-20 Series Crimp Snap-In Contacts |
环境参数
| 工作温度 | -55C to 105C | ||
