点击放大查看

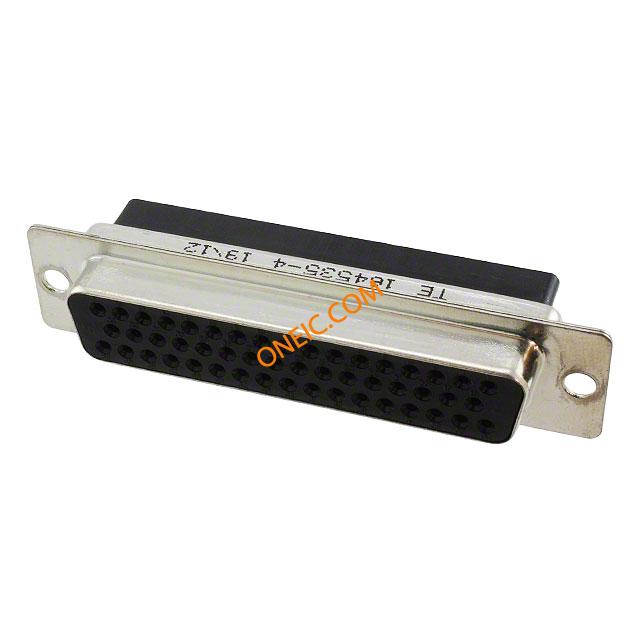

164535-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 50 POS Crimp ST D-Sub Standard Connectors 50P.HDP20 REC.ASSY. Standard Cable Connectors CONN RCPT 50POS CRIMP SNAP Conn Housing RCP 50 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 50ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D-Sub; PIN:50; female; w/o terminals; for cable; B:10.7mm |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 最大额定电流 | 3.7/Contact A | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 17.9 mm |
| 高度 | 15.4 mm | 重量 | 0.01 kg |
| 钻孔直径 | 10.7mm | 包装方式 | Bulk |
| 外壳尺寸 | 5 | 触点形式 | Signal |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 连接器类型 | Crimp Snap | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | for cable | 排数 | 3 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Holes |
| 触头材料 | copper alloy | 总长度 | 66.9 mm |
| 包装数量 | 50 | 尺寸/外形 | see |
| 接地凹痕 | Without | 外径 | 66.9mm |
| 触点数 | 50 | 介电材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 位数 | 50 | 外壳尺寸-插件 | Front Metal Shell |
| 外壳材料及表面处理 | Steel, Tin Plated | 小外径 | 61.1mm |
| 外壳尺寸，连接器布局 | 5 (DD, D) | ||
产品信息
| SPG | 50 | 备注 | Without Grounding Tab |
| 类型 | Housing | 等级 | Standard |
| 连接器性别 | RCP | 系列 | HDP-20 (Crimp Snap) |
| 产品子类型 | Connector | 单元数量 | 50 |
| 输出配置 | Free Hanging (In-Line) | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
