点击放大查看

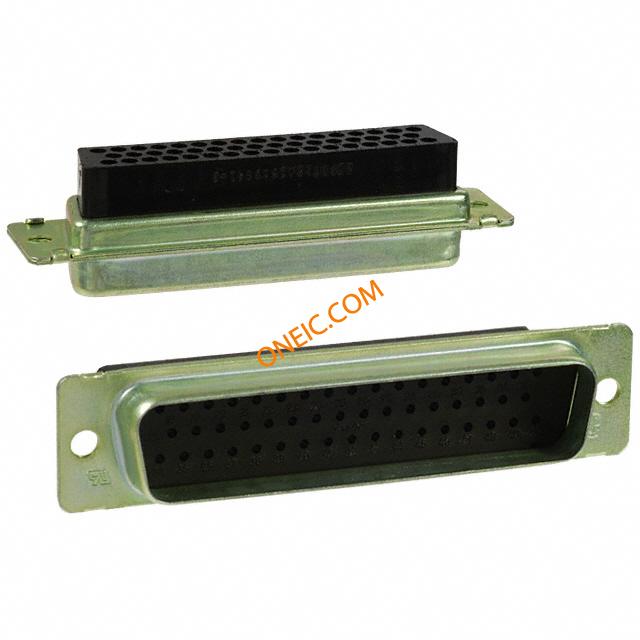

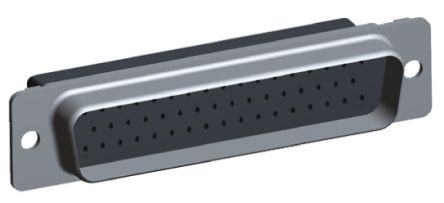

1658641-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 50 POS ST D-Sub Standard Connectors 50P PLUG ZINC Standard Cable Connectors CONN D-SUB HOUSING PLUG 50POS AMPLIMITE HDP-20 d-sub cable plug,50 pin Conn Housing PL 50 POS ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 50PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, PLUG, SIZE 5, STEEL Conn;D-Sub;CablePlug;50Pos;STR;HDP-20Series;CrimpSnap;28-24AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 50路 2.77节距 直 压接式 D-sub 连接器, 插头 PLUG ASSY SIZE 5 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 450 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85366910 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | ULRecognized,ULListedandCSACertified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V ac | 最大额定电流 | 3.7/Contact A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 0.23in |
| 间距 | 2.77 | 宽度 | 0.605in |
| 高度 | 15.36 mm | 长度 | 2.635in |
| 重量 | 0.014 | 包装方式 | Bulk |
| 外壳尺寸 | 5 | 导线线规 | 28-24 |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Signal | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Zinc | 行程角度 | Straight |
| 连接器类型 | Crimp Snap | 法兰特征 | Housing/Shell (Unthreaded) |
| 外壳涂层 | Zinc | 安装样式 | Wire |
| 排数 | 3 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | Thermoplastic |
| 锁定特性 | Mounting Holes | 本体材料 | :Metal |
| 壳体材料 | Glass Fibre Reinforced Nylon | 总长度 | 66.92 mm |
| 主要材料 | D-Subminiature | 尺寸/外形 | 2.635 x 0.605 x 0.23in |
| 接地凹痕 | Without | 端接样式 | Crimp |
| 触点数 | 50 | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 50 | 外壳尺寸-插件 | Full Metal Shell |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc |
| 外壳尺寸，连接器布局 | 5 (DD, D) | ||
产品信息
| 备注 | Plugs accept size 20 DF pin contacts. | 类型 | Housing |
| 等级 | Standard | 连接器性别 | PL |
| 系列 | HDP-20 | 制造商全称 | HDP-20 |
| 产品子类型 | Connector | 应用细节 | Commercial |
| 适用产品/相关产品 | :HDP-20 Series Crimp Snap-In Contacts | ||
环境参数
| 工作温度 | +105°C | ||
