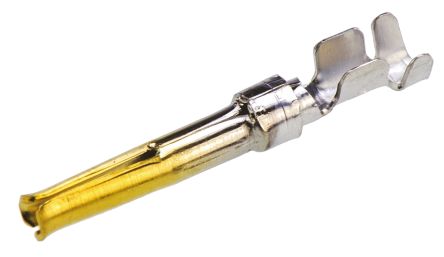

166291-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts SOCKET CONTACT CRIMP 24-20 AWG Standard Cable Connectors CONN SOCKET 24-20AWG 30GOLD AMPLIMITE HD20 socket crimp contact 20DF Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT SOCKET Connector,contact,sz20,crmprcp,24-20awg Contact; female; 0.2÷0.56mm2; 24÷20AWG; crimped; 7.5A Crimp contact socket PU=100 ST, 166291-1, TE Connectivity TE Connectivity Amplimite HD-20系列 尺寸20触点 母 压接 D-sub 连接器触点, 镀金 触点, 24 → 20 AWG 20DF COSI SOCKET |
| 分类 |
商业参数
| 产品类别 | D-Sub Contacts | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 最大额定电流 | 7.5A | ||
机械参数
| 长度 | 14.1mm | 重量 | 0.01 |
| 包装方式 | Bulk | 导线线规 | 24-20 |
| 端接方式 | Crimp | 触点形式 | Stamped |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 安装类型 | crimped | 插针或插孔 | Socket |
| 连接器类型 | Connector D-Subminiature | 接触镀层 | Gold Over Nickel |
| 触头材料 | Phosphor Bronze | 包装数量 | Loose Piece |
| 连接器 - 电缆 | contact | 绝缘高度 | Yes |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp Snap-In | 绝缘直径 | 1.52 [0.060] |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | :24AWG |
| 线规或范围 - mm² | 0.2 - 0.6 [24-20] | 外径-未扩张 | :1.52mm |
产品信息
| SPG | 1000 | 类型 | Signal |
| 等级 | Standard | 连接器性别 | SKT |
| 系列 | HD-20 | 产品特性 | Insulation Support |
| 产品子类型 | Contact | 单元数量 | 1 |
| 适用产品/相关产品 | :D Sub Connectors | ||
