点击放大查看

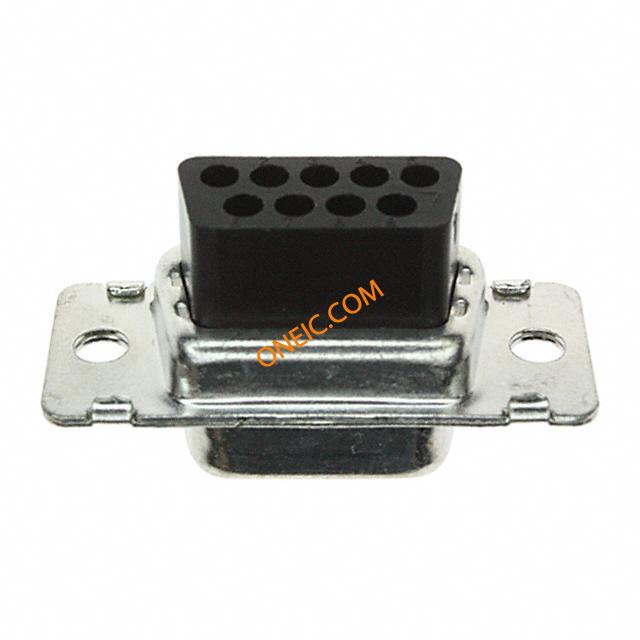

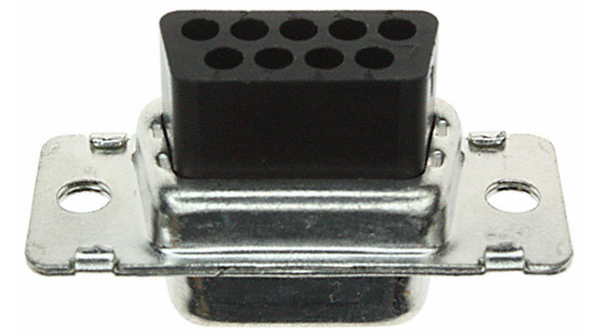

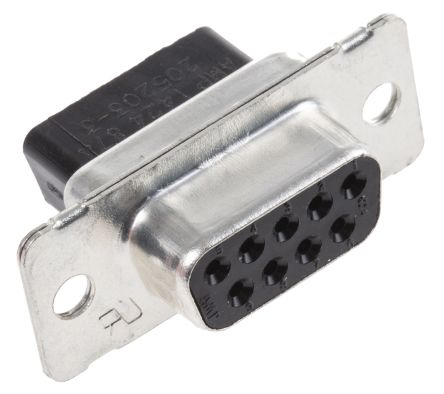

205203-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 9 POS Crimp ST D-Sub Standard Connectors 9P SOCKET TIN Standard Cable Connectors CONN D-SUB HOUSING RECEPT 9POS AMPLIMITE HDP-20 d-sub cable socket,9way Conn Housing RCP 9 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HOUSING, D SUB, RECEPTACLE, 9WAY Conn;D-Sub;CableSocket;9Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell D-Sub crimp socket-housing 9P, 205203-3, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 9路 直 压接式 D-sub 连接器, 插座 CRIMP SNAP RCPT ASSY,SIZE 1 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 800 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | ULRecognized,ULListedandCSACertified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 VAC | 工作电压 | :250V |
| 接触电阻 | :15mohm | 击穿电压 | :1kV |
| 最大额定电流 | 3.7/ContactA | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 17.9mm |
| 宽度 | 12.55mm | 高度 | 12.55 mm |
| 长度 | 30.81mm | 重量 | 0.00496 |
| 包装方式 | Bulk | 外壳尺寸 | 1 |
| 导线线规 | 18-28 AWG | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 行程角度 | Straight | 连接器类型 | Crimp Snap |
| 接触镀层 | Tin | 法兰特征 | Housing/Shell (Unthreaded) |
| 外壳涂层 | Tin | 安装样式 | Wire |
| 排数 | 2 | 壳体镀层 | :Tin |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Holes |
| 本体材料 | :Steel | 壳体材料 | Steel |
| 总长度 | 30.81 mm | 主要材料 | D-Subminiature |
| 接地凹痕 | Without | 端接样式 | Crimp |
| 触点数 | 9 | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 9 | 外壳尺寸-插件 | Full Metal Shell |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 备注 | Receptacles accept size 20 DF socket contacts. | 类型 | Housing |
| 等级 | Standard | 连接器性别 | RCP |
| 系列 | HDP-20 | 制造商全称 | HDP-20 |
| 产品子类型 | Connector | 应用细节 | Commercial |
| 适用产品/相关产品 | :HDP-20 Series D Sub Connectors | ||
环境参数
| 工作温度 | 105°C | ||
