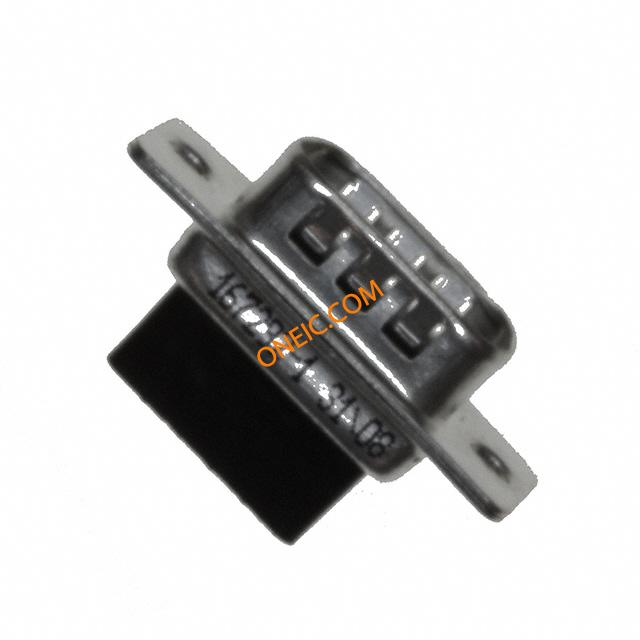

点击放大查看

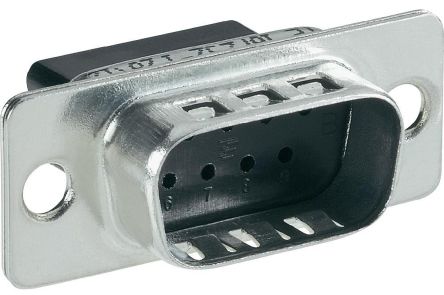

167292-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 9 POS Crimp ST D-Sub Standard Connectors 09P HDP20 PLUG ASSY Standard Cable Connectors CONN D-SUB PLUG 9POS CRIMP SNAP BOX FOR D-SUB MALE 9P Conn Housing PL 9 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG HOUSING, D, 9WAY D-Sub; PIN:9; male; w/o terminals; for cable; B:8.4mm; C:25mm D-Sub crimp plug-housing 9P, 167292-1, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 9路 直 压接式 D-sub 连接器, 插头 09P.HDP20 PLUG ASSY |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 3.7/Contact A | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 17.65mm |
| 宽度 | 12.55mm | 高度 | 12.5 mm |
| 长度 | 30.8mm | 重量 | 0.004 |
| 钻孔直径 | 8.4mm | 包装方式 | Bulk |
| 外壳尺寸 | 1 | 触点尺寸 | 20 |
| 触头类型 | Signal | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Tin | 连接器类型 | Crimp Snap |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | Nylon |
| 锁定特性 | Mounting Holes | 本体材料 | :Metal |
| 触头材料 | copper alloy | 壳体材料 | Steel |
| 总长度 | 30.8 mm | 包装数量 | 50 |
| 尺寸/外形 | 30.8 x 12.55 x 17.65mm | 接地凹痕 | With |
| 端接样式 | Crimp | 外径 | 30.8mm |
| 触点数 | 9 | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 9 | 外壳尺寸-插件 | Front Metal Shell |
| 外壳材料及表面处理 | Steel, Tin Plated | 小外径 | 25mm |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| SPG | 50 | 备注 | Contacts Not Provided |
| 类型 | Housing | 等级 | Standard |
| 连接器性别 | PL | 系列 | HDP-20 (Crimp Snap) |
| 产品子类型 | Connector | 单元数量 | 1 |
环境参数
| 工作温度 | 105°C | ||
