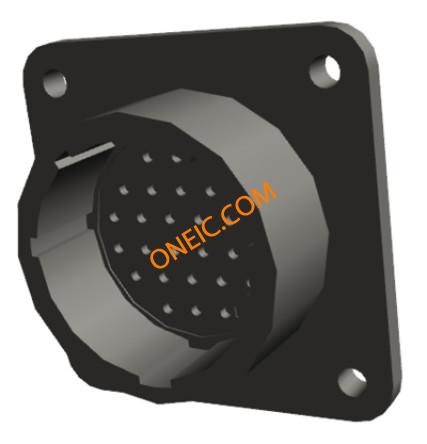

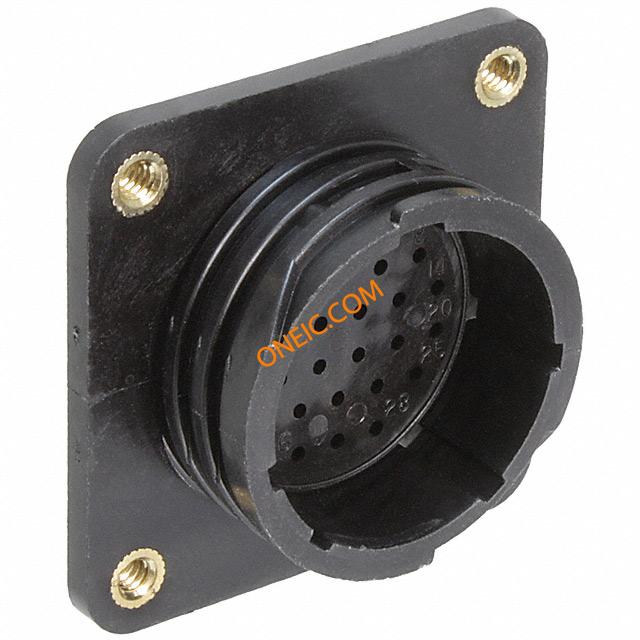

205840-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 28 POS Crimp ST Panel Mount 28 Terminal 1 Port Standard Circular Connector REC SQUARE STD 17-28 CPC Connectors CONN RCPT CPC 28POS W/INSERTS ConnectorHousing,CPCRecept.Assy,28Pos CPC (Circular Plastic) and Circular Metal-Shell Connectors CPC (Circular Plastic) and Circular Metal-Shell Connectors Product Highlights:Without Contacts28 Positions28 Signal Positions0 Power PositionsHousing Gender = ReceptacleSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCRecept.Assy;28Pos;Sz17;Series2;PanelMnt;StdSex CPC RCPT ASSY 17-28 W/INSERTS |
| 分类 |
商业参数
| 商标名 | CPC Series 2 | 标准包装规格 | 100 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 合规性 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 防溅等级 | 无 | 通道数量 | 28 |
| 最大额定电流 | 7.5A | 连接器类型 - 电压输入 | 标准 |
机械参数
| 颜色 | Black | 密封型 | No |
| 外形尺寸(长x宽) | 17 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 外壳尺寸 | 17 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Crimp | 螺纹尺寸 | 15/16-20 UNEF-2A |
| 触点尺寸 | 20 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 引脚数 | 0 | 外壳材料（壳体） | 母端, 母端 |
| 连接器样式 | Receptacle | 连接器用途 | Threaded |
| 插入件材料 | Brass | 壳体材料 | Thermoplastic |
| 包装数量 | 100 | 面板安装类型 | Square Flange |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 28 | 端接表面处理 | 带有 |
| 接触件尾部长度 | 20D | 介电材料 | Brass |
| 绝缘直径 | 1.73 [0.068] | 位数 | 28 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 0.15" |
| 外壳材料及表面处理 | Thermoplastic | 螺纹/螺钉/孔尺寸 | 4-40 |
| 第一连接器安装类型 | Panel | 第二连接器安装特性 | Standard |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | CPC |
| 预加载 | No | 排列方式 | 17-28 |
| 制造商全称 | Series2 | 产品子类型 | Connectors |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Pin Contacts | ||
环境参数
| 工作范围 | 不密封 | ||
相关型号

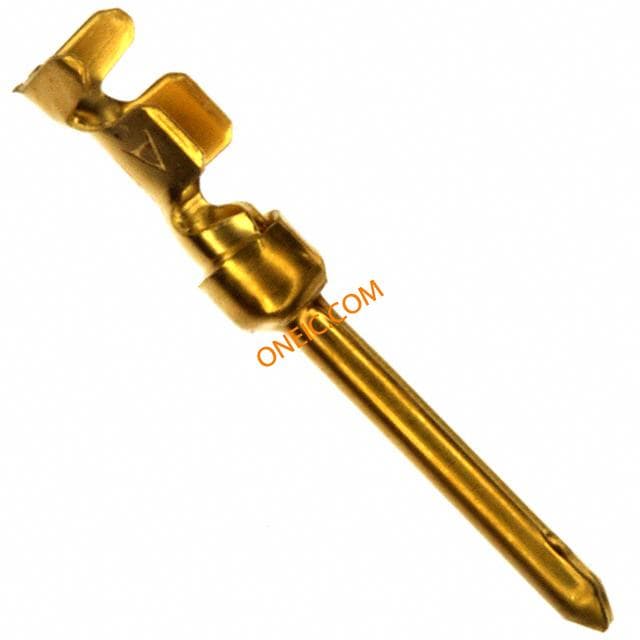

66506-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, CRIMP CONTACT, CRIMP, PIN, 24-20AWG, REEL CONTACT,PIN,HDP-20,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG 20 DF PIN
66506-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONTACT PIN 20-24AWG CRIMP GOLD Standard Circular Connector PIN CONTACT 20 DF PIN 24-20 AWG 50 AU Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PIN CONTACT 20 DF
2-66507-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts 20DF PIN 28-24 BR/AU Standard Cable Connectors CONN PIN 28-24AWG 50GOLD Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HD 20 CONT,AU PLTD
66507-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts CRIMP PIN 28-24 Standard Cable Connectors CONN PIN 24-28AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT,PIN,HDP-20,CRIMP,.76-1.02MM HDP20 Series 24-28 AWG Insulation Support Crimp Snap Pin Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 针 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG 20 DF PIN
66507-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts CRIMP PIN 28-24 Standard Cable Connectors CONN PIN 24-28AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, 28-24AWG, CRIMP CONTACT,PIN,HDP-20,PLATED,CRIMP,.76-1.02MM HDP20 Series 24-28 AWG Insulation Support Crimp Snap Pin Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 针 D-sub 连接器触点, 镀金 触点, 28 → 24 AWG HD 20 DF PIN PLTD
205839-3
te connectivity / amp
Conn CPC SKT 28 POS Crimp ST Cable Mount 28 Terminal 1 Port CPC Connectors CONN PLUG CPC 28POS STD SER 2 28 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Female Contacts Standard Circular Connector PLUG STANDARD 17-28 Conn CPC SKT 28 POS Crimp ST Cable Mount 28 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 28PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR, CONNECTOR, PLUG, 17-28,CABLE ConnectorHousing;CPCPlugAssy;28Pos.;Sz.17;Series2;FreeHang;StdSex Connector: circular; Series: CPC Series 2; plug; female; PIN:28 Plug CPC2 Poles=28, accepts female contacts / Free hanging/cable mount, 205839-3, TE Connectivity TE Connectivity 28路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 17-28
1-66506-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP20 pin contact 24 - 20awg Pin & Socket Connectors PIN CONTACT 24-20AWG gold flash o/nickel Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CRIMP PIN, GOLD, 24-20AWG PINCONTACT,20DF HDP-20 Series 24-20 AWG Wire to Cable Crimp Snap Socket Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG PIN CONTACT, 20 DF
1-66507-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts HDP-20 PIN 28-24 AMPLIMITE HD20 Crimp Snap-In CONN D-SUB PIN 24-28AWG AU AMPLIMITE HDP-20 pin crimp contact 20 DF Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CRIMP PIN, GOLD, 28-24AWG D-SubConnector;Pin;28to24AWG;Crimp;0.04in.;GoldFlash;20;Standard TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG PIN CONTACT, 20 DF
66506-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Connector PIN CONTACT 24-20AWG sel gold o/nickel Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, CRIMP, PIN, 24-20AWG Contact,Pin,20DF,Male Crimp Contact 7.5 A, 66506-9, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG PIN CONTACT, 20 DF
66506-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub TERMINAL, 24-20 AWG CONTACT,PIN,HDP-20,PLATED,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG HD 20 DF PIN PLTD
66507-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece CONN PIN 24-28AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts PIN CONTACT 28-24AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CRIMP PIN, GOLD, 28-24AWG PINCONTACT,20DF CONN 24-28AWG Crimp Contact 7.5 A, 66507-9, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG PIN CONTACT, 20 DF
66506-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONN PIN 20-24 AWG GOLD CRIMP AMPLIMITE HDP-20 Pin Contact 24-20 AWG Standard Circular Connector PIN CONTACT 20 DF Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, PIN, 24-20AWG, CRIMP PINCONTACT,20DF PIN CONTACT, 20 DF

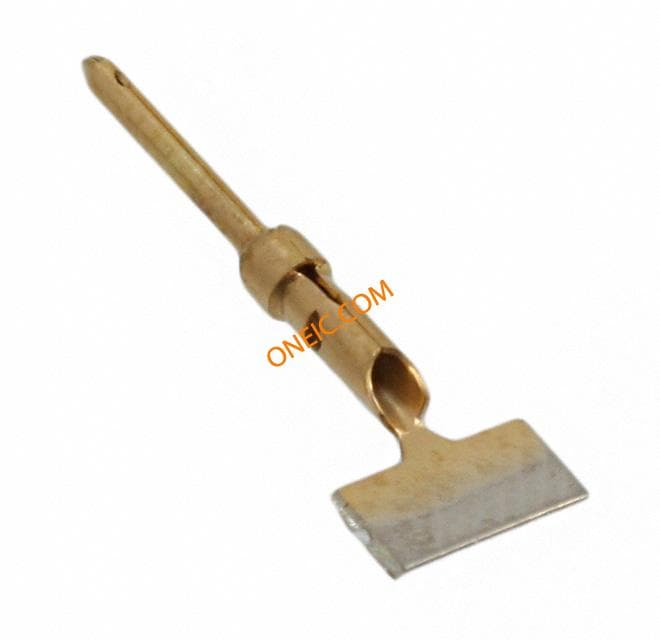

66570-3
