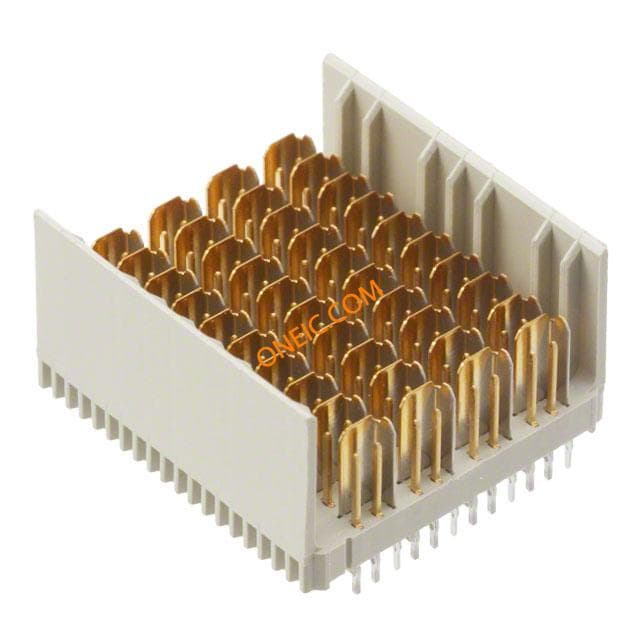

6469001-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Advanced TCA RCP 80 POS 2.5mm Press Fit RA Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN RCPT 80POS 8ROW RT ANG HM-Z ATCA,daughter connector,PCB Hard Metric Connectors Z-PACK HM-ZD RECPT Conn Advanced TCA RCP 80 POS 2.5mm Press Fit RA Thru-Hole Product Highlights:ReceptacleConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.20 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd CONNECTOR, ATCA, D/CARD HEADER,HM-ZD,80POS,10COLUMN,ACTIONPINPOST,2.20MM,PCB 80 Position 2.5 mm R/A Receptacle Front Board Z-PACK HM-Zd Signal Connector TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 80 路 直角 8 排 母 背板连接器, 按式端子, 7A HM-ZD 4PR RECP 80P |
| 分类 |
商业参数
| 其他名称 | 64690011 | 产品类别 | Hard Metric Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 20 |
合规参数
| RoHS | Not applicable / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 接口 | HM-Zd | 额定电压 | 250V |
| 工作电压 | :250V | 接触电阻 | 20 mohm |
| 最大额定电流 | 0.700A | 最小供电电压 | 250VAC |
机械参数
| 深度 | 28.9 mm | 间距 | 2.5 mm |
| 高度 | 21.35 mm | 重量 | 0.02 |
| 材料（通用） | :Glass Filled Polyester | 包装方式 | Tube |
| 端接方式 | Press Fit | 触头类型 | ACTION PIN Post |
| 引脚间距 | :2mm | 柱间距 | :2mm |
| 安装类型 | Through Hole | 电缆间距 | 25.4 [1] |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 8 |
| 连接器样式 | High Speed | 连接器用途 | Daughtercard |
| 屏蔽材料 | Phosphor bronze | 触头材料 | Copper-Nickel-Silicon |
| 壳体材料 | Polyester GF | 总长度 | 24.90 [0.980] |
| 端接样式 | Press Fit | 连接器颜色 | 40 |
| 触点数 | 80 | 端接表面处理 | Tin over Nickel |
| 接触件端接 | :Press Fit Right Angle | 位数 | 4 |
| 典型触点布局 | 80 Single Signal, 40 Ground | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Advanced TCA | 连接器性别 | Female |
| 系列 | Z-Pack HM-ZD | 制造商全称 | AMP |
| 产品子类型 | Receptacle | 列数 | 10 |
| 选择性装载 | No | 加载位置数 | All |
| 转换前位置数 | 10 | ||
环境参数
| 工作温度 | -65°C ~ 105°C | ||
