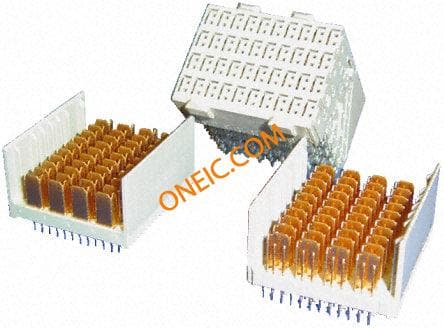

6469074-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Hard Metric HDR 80 POS 2.5mm Press Fit ST Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories HM-ZD 4PR HDR ASSY 1.8MM Hard Metric Connectors HM-ZD 4PR HDR ASSY 1.8MM Conn Hard Metric HDR 80 POS 2.5mm Press Fit ST Thru-Hole Product Highlights:HeaderConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 1.80 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd Z-PACK 80 Position Through Hole Press Fit Vertical Pin Header |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 接口 | HM-Zd | 额定电压 | 250V |
| 数据速率（最大） | ≤12 | 最大额定电流 | 0.700A |
机械参数
| 间距 | 2.5 mm | 长度 | 24.9 |
| 包装方式 | Tube | 屏蔽 | 是 |
| 壳体颜色 | 灰色 | 端接方式 | Press Fit |
| 触头类型 | ACTION PIN Post | 固定类型 | 否 |
| 安装类型 | Through Hole | 电缆间距 | 25.4 [1] |
| 连接器类型 | Header, Male Pins and Blades | 接触镀层 | Gold Over Nickel |
| 排数 | 8 | 连接器样式 | High Speed |
| 连接器用途 | Backplane | 插入件材料 | 磷青铜 |
| 屏蔽材料 | Phosphor bronze | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 总长度 | 24.90 [0.980] |
| 包装数量 | 20 | 面板安装类型 | 垂直 |
| 端接排数 | 压配合 | 端接样式 | 插针 |
| 连接器颜色 | 40 | 触点数 | 80 |
| 端接表面处理 | Tin over Nickel | 位数 | 80 |
| 柱体长度（配合） | 1.80 [0.071] | 典型触点布局 | 80 Single Signal, 40 Ground |
| 接触长度 - 配合 | 5.30 [0.209] | 法兰下方引脚尺寸 | 否 |
| 端子柱长度 | 1.8 | 接触镀层厚度 | 30µin (0.76µm) |
| 每排/每行位置数 | All | ||
产品信息
| 制造商 | 5.3 | 类型 | Hard Metric |
| 功能 | Backplane | 卡类型 | 无 |
| 带定序器 | No | 制造商全称 | AMP |
| 产品子类型 | Header | 控制器系列 | 否 |
| 列数 | 10 | 选择性装载 | No |
| 输出配置 | Through Hole | 加载位置数 | All |
| 转换前位置数 | 10 | ||
环境参数
| 工作温度 | -65°C ~ 105°C | ||
