点击放大查看

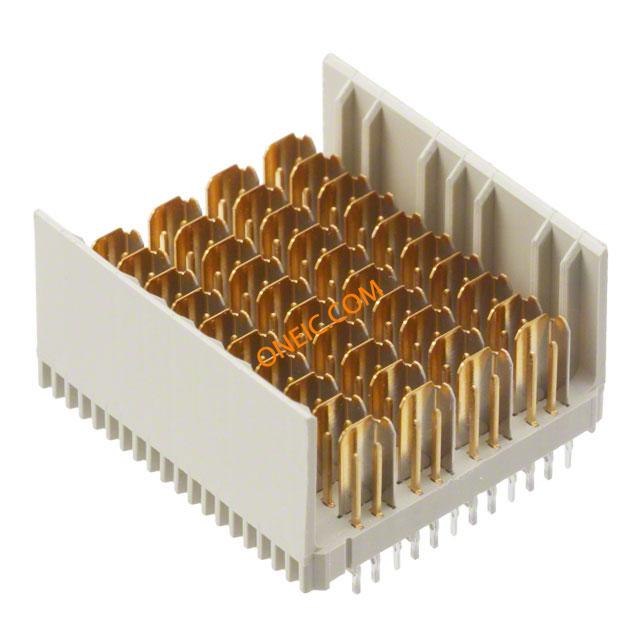

6469002-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Advanced TCA HDR 80 POS 2.5mm Press Fit ST Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN HEADER 80POS 8ROW VERT HM ATCA,backplane connector,PCB Hard Metric Connectors HM-ZD 4PR 80P HDR ASSY Conn Advanced TCA HDR 80 POS 2.5mm Press Fit ST Thru-Hole Product Highlights:25.4 mm Card Slot PitchHeaderPCB Mount Angle = VerticalPairs per Column = 4Columns per Connector = 10Search Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd CONNECTOR, ATCA, BACKPLANE HEADER,HM-ZD,80POS,10COLUMN,ACTIONPINPOST,5.22MM,PCB 80 Position 2.5 mm Vertical Header Backplane Z-PACK HM-Zd Signal Connector TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 80 路 直向 8 排 公 背板连接器, 按式端子 HM-ZD 4PR HDR 80P 5.2MM |
| 分类 |
商业参数
| 其他名称 | 64690021 | 零件号别名 | 512-6922 |
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 接口 | HM-Zd | 额定电压 | 250V |
| 工作电压 | :250V | 最大额定电流 | 0.700A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 23.43 mm | 间距 | 2.5 mm |
| 高度 | 13.4 mm | 重量 | 0.006 |
| 包装方式 | Tube | 端接方式 | Press Fit |
| 触头类型 | ACTION PIN Post | 引脚间距 | :2mm |
| 柱间距 | :1.5mm | 安装类型 | Through Hole |
| 电缆间距 | 25.4 [1] | 连接器类型 | Header, Male Pins and Blades |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 8 | 连接器样式 | High Speed |
| 连接器用途 | Backplane | 屏蔽材料 | Phosphor bronze |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester GF |
| 总长度 | 24.90 [0.980] | 端接样式 | Press Fit |
| 连接器颜色 | 40 | 触点数 | 80 |
| 端接表面处理 | Tin over Nickel | 接触件端接 | :Press Fit Vertical |
| 位数 | 80 | 柱体长度（配合） | 2.50 [0.098] |
| 典型触点布局 | 80 Single Signal, 40 Ground | 接触长度 - 配合 | 5.30 [0.209] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Advanced TCA | 连接器性别 | Male |
| 系列 | Z-Pack HM-ZD | 带定序器 | No |
| 制造商全称 | AMP | 产品子类型 | Header |
| 列数 | 10 | 选择性装载 | No |
| 加载位置数 | All | 转换前位置数 | 10 |
环境参数
| 工作温度 | -65°C ~ 105°C | ||
文档与媒体
相关型号
6469001-1
te connectivity / amp
Conn Advanced TCA RCP 80 POS 2.5mm Press Fit RA Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN RCPT 80POS 8ROW RT ANG HM-Z ATCA,daughter connector,PCB Hard Metric Connectors Z-PACK HM-ZD RECPT Conn Advanced TCA RCP 80 POS 2.5mm Press Fit RA Thru-Hole Product Highlights:ReceptacleConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.20 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd CONNECTOR, ATCA, D/CARD HEADER,HM-ZD,80POS,10COLUMN,ACTIONPINPOST,2.20MM,PCB 80 Position 2.5 mm R/A Receptacle Front Board Z-PACK HM-Zd Signal Connector TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 80 路 直角 8 排 母 背板连接器, 按式端子, 7A HM-ZD 4PR RECP 80P
1469362-1
te connectivity / amp
Conn High Speed RCP 80 POS 2.54mm Solder ST Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN RCPT 80POS 8ROW VERT HM-Z High Speed / Modular Connectors B-PLANE HMZD REC 8X010P VRT Conn High Speed RCP 80 POS 2.54mm Solder ST Thru-Hole Product Highlights:ReceptacleConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.20 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd HM-ZD VERT RECPT ASSY 18MM

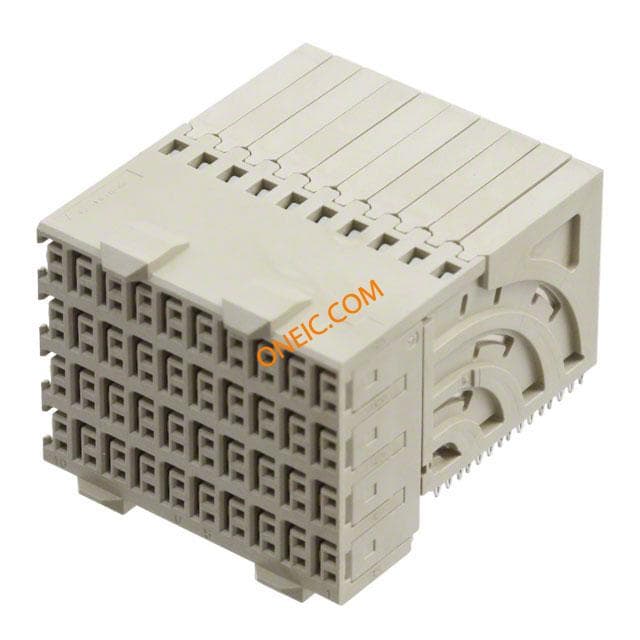

2065657-1
