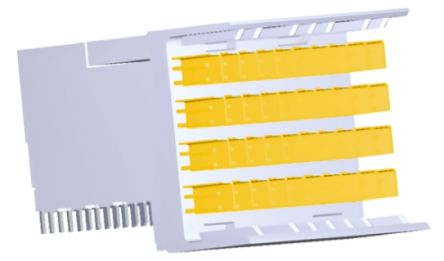

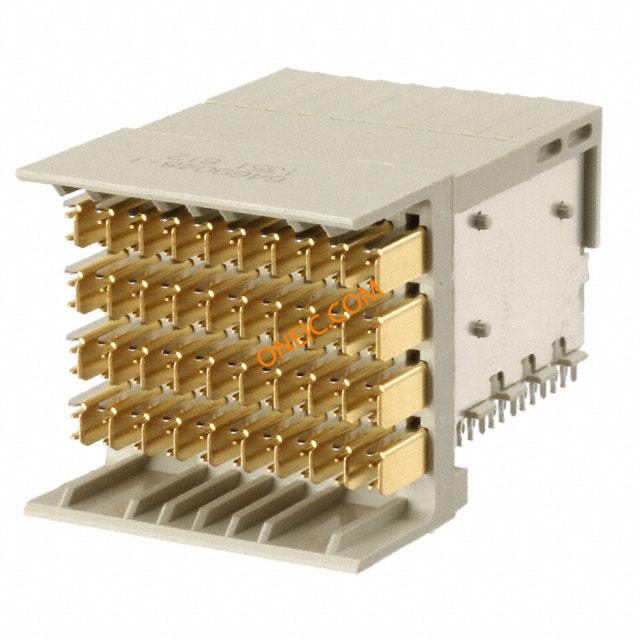

6469048-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Advanced TCA HDR 80 POS 2.5mm Press Fit RA Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN HEADER 80POS R/A HM-ZD TIN Hard Metric Connectors HDR 8X010P R/A B-PLANE HMZD Conn Advanced TCA HDR 80 POS 2.5mm Press Fit RA Thru-Hole Product Highlights:HeaderConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.20 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd HARD METRIC CONNECTOR, HEADER, 80POS HEADER, HM-ZD, THT, VERTICAL, 80WAY HEADER,HM-ZD,80POS,10COLUMN,ACTIONPINPOST,2.20MM,PCB CONN HEADER 80POS TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 80 路 直角 4 排 公 背板连接器, 焊接端子 HMZD 4PR RA HDR 80P ASSY LF |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 120 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 接口 | HM-Zd | 额定电压 | 250V |
| 最大额定电流 | 0.700A | ||
机械参数
| 间距 | 2.5 mm | 重量 | 0.018 |
| 包装方式 | Tube | 端接方式 | Press Fit |
| 触头类型 | ACTION PIN Post | 柱间距 | :2mm |
| 安装类型 | Through Hole | 电缆间距 | 25.4 [1] |
| 连接器类型 | Header, Male Pins and Blades | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 8 |
| 连接器样式 | High Speed | 连接器用途 | Daughtercard |
| 屏蔽材料 | Phosphor bronze | 触头材料 | Copper-Nickel-Silicon |
| 壳体材料 | Polyester GF | 总长度 | 24.90 [0.980] |
| 端接样式 | Solder | 连接器颜色 | 40 |
| 触点数 | 80 | 端接表面处理 | Tin over Nickel |
| 接触件端接 | :Press Fit Right Angle | 位数 | 4 |
| 柱体长度（配合） | 2.20 [0.087] | 典型触点布局 | 80 Single Signal, 40 Ground |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Advanced TCA | 连接器性别 | :Header |
| 系列 | 6469048 | 带定序器 | No |
| 制造商全称 | AMP | 产品子类型 | Header |
| 列数 | 10 | 选择性装载 | No |
| 加载位置数 | All | 转换前位置数 | 10 |
环境参数
| 工作温度 | -65°C ~ 105°C | ||
