点击放大查看

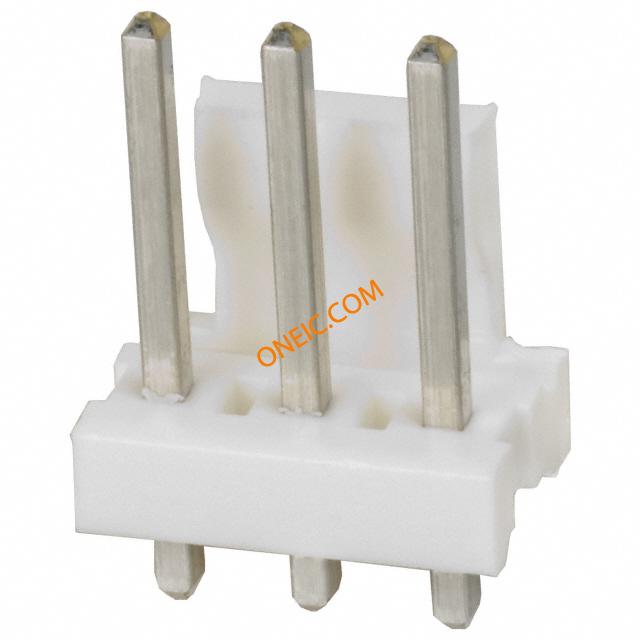

644752-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN Headers & Wire Housings 03P MTA156 HDR ASSY Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector3 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 3POS, 3.96MM MTA-156HEADER-TIN,03PMTA156HDRASSYSQSTRF/L 03P MTA156 HDR ASSY SQ STR F/L |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 600 V | 开关功能 | Friction Lock |
| 接触电阻 | 3 mohm | 最大额定电流 | 7 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Natural | 深度 | 7.62 mm |
| 间距 | 3.96 mm | 高度 | 13.33 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 基体材料 | :Polyester | 外壳颜色 | Natural |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin | 紧固类型 | Friction Lock |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 总长度 | 11.89 mm | 主要材料 | InterconnectSystem |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 3 | 接触件端接 | :Through Hole Vertical |
| 位数 | 3 | 接触长度 - 配合 | 0.400" (10.16mm) |
| 端子柱长度 | 4.45 mm | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | MTA-156 | 制造商全称 | MTA-156 |
| 产品子类型 | Headers | 应用细节 | Wire-to-Board |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 105C | ||
