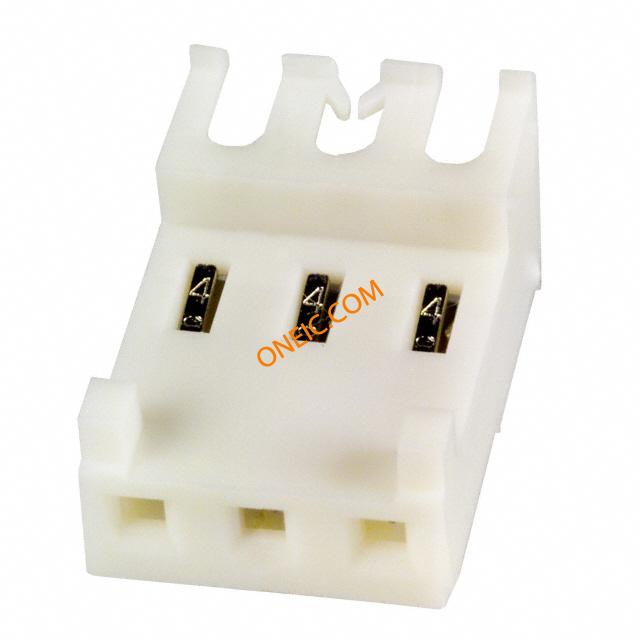

3-644472-3

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 3 POS 3.96mm IDT RA Cable Mount CONN RECEPT 3POS 24AWG MTA156
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS

Lead free / RoHS Compliant

机械参数

颜色	White	间距	3.96 mm
包装方式	Bulk	导线类型	Discrete or Ribbon Cable
导线线规	24 AWG	端接方式	IDT
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	Tin Over Nickel
排数	1	电缆端接方式	IDC
触点数	3	位数	3
接触镀层厚度	80µin (2.03µm)

产品信息

类型	IDC Connector	连接器性别	RCP
产品特性	Feed Through, Polarizing Key

文档与媒体

PDF 文档

644472

相关型号

3-641208-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS .156 30 GOLD TE Connectivity MTA-156 Series 3.96mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 3P Square post gold Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:3 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-156HEADERGOLD,03PMTA156HDRASSYFLSTLF TE Connectivity MTA-156 系列 3.96mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 03P MTA156 HDR ASSY FL ST LF

¥3.9305

详情

640445-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 3P Square post tin Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 3WAY Connector,MTA-156;Male;3;CopperAlloy;7;600;0.156in.;Polyester;White Connector: wire-board; Series: MTA-156; 3.96mm; male; socket; PIN:3 Pin header straight 3P, 640445-3, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 03P MTA156 HDR ASSY FL/STR SN

¥0.4536

详情

644749-8

te connectivity / amp

Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 TIN Headers & Wire Housings 156IDCW HDR 1X08P VRT T/H Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY STR SQ SN

¥1.7280

详情

641208-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 3POS 30AU Headers & Wire Housings FRCTN LK HDR STR 3P Square post gold Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY FL ST 30AU

¥3.8160

详情

暂无图片

644769-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS R/A .156 GOLD Headers & Wire Housings 03P MTA156 HDR ASSY R/A SQ AU 03P MTA156 HDR ASSY R/A SQ AU 03P MTA156 HDR ASSY R/A SQ AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥3.2306

详情

644753-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN Headers & Wire Housings 3P HDR ASSY RN STR Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY RN STR F/L

¥0.7200

详情

640389-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 3POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 3P Square post tin Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.156", 3WAY Connector,MTA-156;Male;3;CopperAlloy;7;600;0.156in.;Polyester;White TE Connectivity MTA-156 系列 3.96mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 03P MTA156 HDR ASSY SQ R/A F/L

¥1.2607

详情

640384-3

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY STR RND SN

¥0.8237

详情

644759-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 GOLD Headers & Wire Housings 3P MTA156 HEADER

¥3.7735

详情

640388-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 3P Round post tin Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, 3.96MM, 3WAY Connector,MTA-156;Male;3;CopperAlloy;7;600;0.156in.;Polyester;White TE Connectivity MTA-156 系列 3路 3.96mm节距 (1排) 直 PCB 针座 , 焊接端接, 7A, 通孔 03P MTA156 HDR ASSY RN STR F/L

¥0.5486

详情

644752-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN Headers & Wire Housings 03P MTA156 HDR ASSY Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector3 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 3POS, 3.96MM MTA-156HEADER-TIN,03PMTA156HDRASSYSQSTRF/L 03P MTA156 HDR ASSY SQ STR F/L

¥0.6840

详情

641210-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 3POS 30AU Headers & Wire Housings FRCTN LK HDR RA 3P Square post gold Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole Product Highlights:3 PositionsPreloadedHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HRD FL RA FB 30AU

¥4.5360

详情

640385-3

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 3POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 3P Square post tin Conn Unshrouded Header HDR 3 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY SQ R/A

¥0.7704

详情

641119-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 GOLD Headers & Wire Housings 03P MTA156 HDR ASSY MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY FL/ST 15AU

¥3.2400

详情

644760-3

TE Connectivity / AMP

Headers & Wire Housings 03P MTA156 HDR ASSY FL ST 30AU MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 GOLD

详情

644633-3

TE Connectivity / AMP

Headers & Wire Housings 03P MTA156 HDR ASSY R/A 30AU MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS R/A .156 GOLD

详情

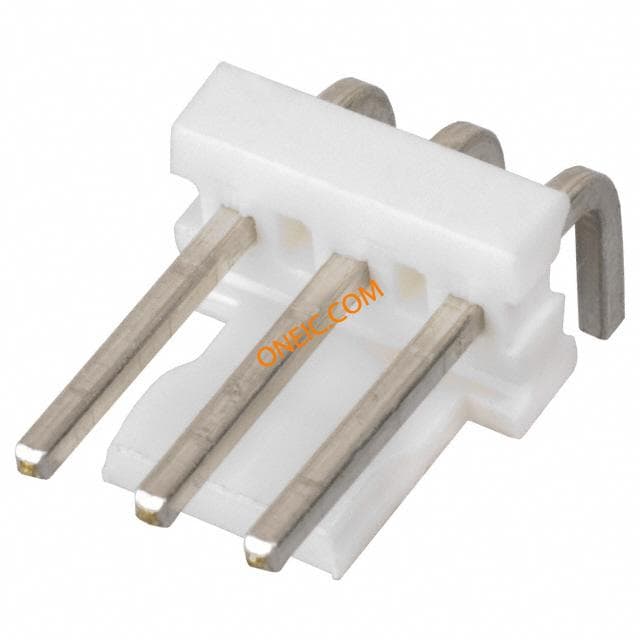

640387-3
