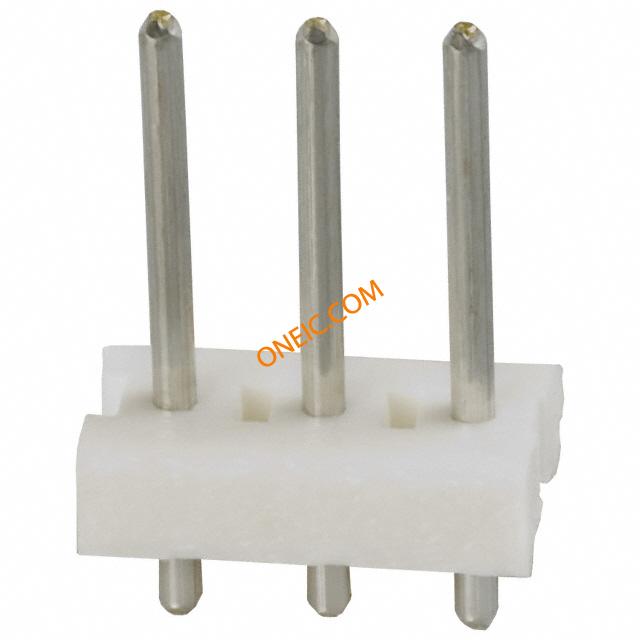

640384-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY STR RND SN |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 600 | 接触电阻 | 3 mohm |
| 最大额定电流 | 7/Contact A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Natural | 深度 | 6.35 mm |
| 间距 | 3.96 mm | 高度 | 13.34 mm |
| 长度 | 11.89 mm [ .468 in ] | 密封型 | Not Sealed |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin Over Nickel | 触点时序 | Without |
| 安装样式 | Through Hole | 引脚数 | 3 |
| 排数 | 1 | 封装形式 | Plug |
| 壳体镀层 | Nickel | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 总长度 | 11.89 mm | 包装数量 | 2000 |
| 面板安装类型 | 通孔 - 焊接 | 端接样式 | 插针 |
| 触点数 | 3 | 位数 | 3 |
| 兼容外壳尺寸（如TM-700等） | MTA .156 连接器组件或 SL .156 连接器组件 | 安装孔直径 | 不带 |
| 接触件表面处理 - 配合 | 锡 | 典型触点布局 | 直插式 |
| 接触长度 - 配合 | 0.400" (10.16mm) | 端子柱长度 | 3.56 mm [ .14 in ] |
| 接触镀层厚度 | 15 | 静电放电屏蔽 | 不带 |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 产品子类型 | 公端 | 应用细节 | Power |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55C to 105C |
| 封装热阻 | 1.6 mm [ .063 in ] | ||
