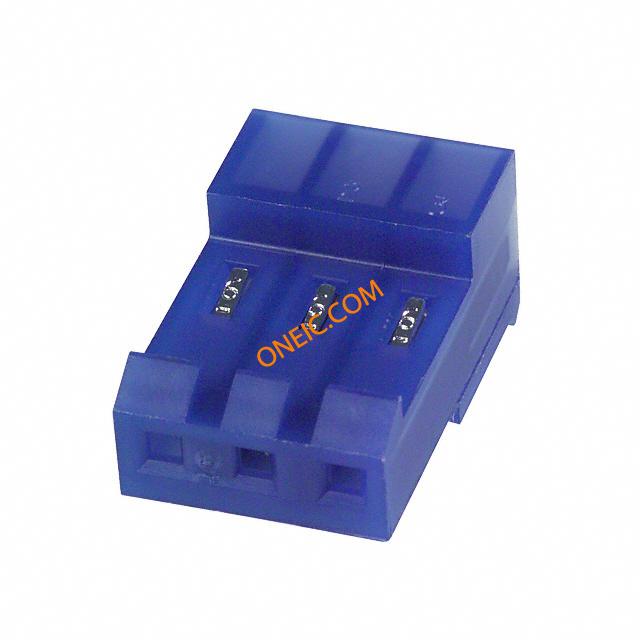

640430-3

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 26AWG MTA156 Headers & Wire Housings 03P MTA156 CONN ASSY 26AWG BLU Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 CONN ASSY 26AWG BLU
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS	Not applicable / RoHS Compliant	UL等级	获得认可
UL档案号	E28476	CSA档案号	LR7189
标准编号	CSA, UL	CSA认证	Certified
材料阻燃等级	UL 94V-2

电气参数

额定电压	600 VAC	开关功能	Locking Ramp
供电电压	600	连接器阻抗	IDC
最大额定电流	7 A

机械参数

颜色	Blue	间距	3.96 mm
高度	9.02 mm [ .355 in ]	长度	11.89 mm [ .468 in ]
包装方式	Bulk	导线类型	Discrete or Ribbon Cable
壳体颜色	白色	电缆类型	分离式导线, 绞线
导线线规	26 AWG	端接方式	IDT
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	Tin-Lead Over Nickel
触点时序	Without	紧固类型	Locking Ramp
安装样式	Wire	排数	1
外壳材料（壳体）	标准	插入件材料	铜合金
触头材料	Copper Alloy	壳体材料	Nylon
包装数量	500	面板安装类型	不带
电缆端接方式	IDC	端接样式	IDC
第一触头极性	Socket (Female)	触点数	3
端接表面处理	带有	接触件端接	Locking Lance
绝缘直径	2.41 mm [ .095 in ]	位数	3
兼容外壳尺寸（如TM-700等）	MTA .156 头	安装孔直径	不带
接触件表面处理 - 配合	锡铅	典型触点布局	同轴
表面贴装焊盘尺寸	Without	接触镀层厚度	80µin (2.03µm)
静电放电屏蔽	带有

产品信息

备注	肋之间的条纹可能会减少	类型	IDC Connector
连接器性别	F	系列	MTA-156
产品特性	Closed End	可密封	否
产品子类型	Connector Assemblies

环境参数

工作温度

-55 – 105 °C [ -67 – 221 °F ]
