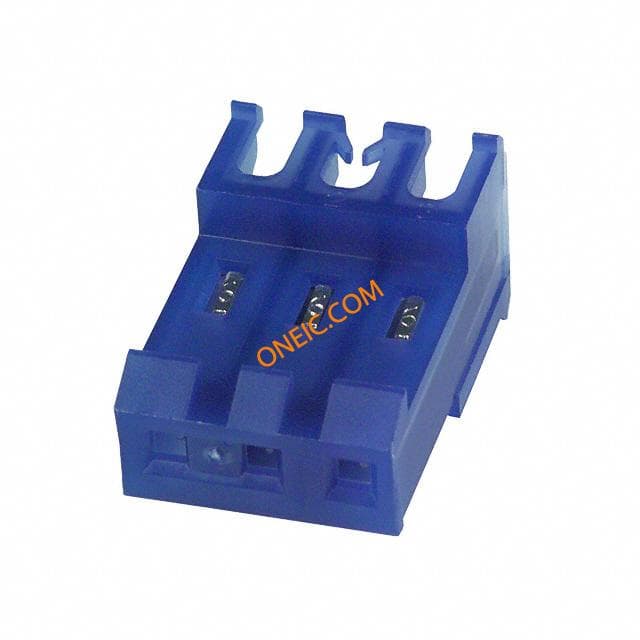

3-641526-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector M 3 POS 3.96mm IDT RA Cable Mount Headers & Wire Housings OBSOLETE MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 3POS IDC 26AWG .156 |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Blue | 间距 | 3.96 mm |
| 包装方式 | Bulk | 遮蔽类型 | Yes |
| 导线类型 | Discrete or Ribbon Cable | 出线方向 | 90° |
| 导线线规 | 26 AWG | 端接方式 | IDT |
| 触头类型 | Male Pin | 第二连接器 | With |
| 触点形状 | Square | 外壳颜色 | Blue |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Feed Thru |
| 接触镀层 | Tin | 排数 | 1 |
| 连接器用途 | Plug | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 安装特性 | Without |
| 面板安装类型 | Without | 电缆端接方式 | IDC |
| 配接方向 | Without | 触点数 | 3 |
| 位数 | 3 | 典型触点布局 | 3.96 [0.156] |
| 接触镀层厚度 | 80µin (2.03µm) | 线规或范围 - mm² | 0.12-0.15² [26] |
产品信息
| 备注 | MTA-156 posted connectors (Closed End and Feed-Thru) will ONLY mate with MTA-15 | 类型 | IDC Connector |
| 连接器性别 | M | 产品特性 | Feed Through |
| 制造商全称 | AMP | 产品子类型 | MTA-156 Posted Wire-to-Wire Connectors |
| 连接类型 | Wire | ||
环境参数
| 机械寿命 | Obsolete | ||
文档与媒体
相关型号
