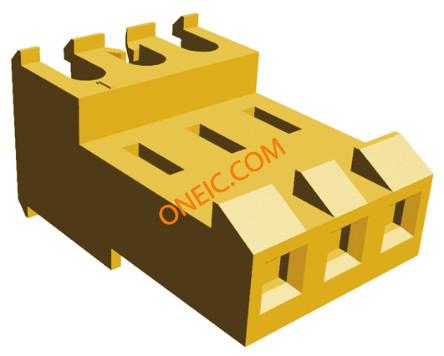

点击放大查看

3-640599-3

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 18AWG MTA156 Receptacle IDC 3 way MTA-156 Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 3.96MM Connector;Receptacle;3;IDCStandard;LockingRamp;90deg;Nylon;0.156in. 03P MTA156 CONN ASSY 18AWG ORA
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85366910
认证机构	CSA,UL	材料阻燃等级	UL94V-2

电气参数

额定电压

600 V ac

最大额定电流

机械参数

颜色	Orange	间距	3.96 mm
重量	0.00113	包装方式	Bulk
导线类型	Discrete or Ribbon Cable	导线线规	18 AWG
端接方式	IDT	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	行程角度	Straight
连接器类型	Receptacle	接触镀层	Tin Over Nickel
紧固类型	Locking Ramp	排数	1
触头材料	Phosphor Bronze	壳体材料	Nylon
总长度	0.468"	主要材料	InterconnectSystem
电缆端接方式	IDC	插针孔直径	0.156"
触点数	3	接触件端接	:IDC / IDT
绝缘直径	0.095"(Wire)	位数	3
接触镀层厚度	80µin (2.03µm)

产品信息

类型	IDC Connector	连接器性别	F
系列	MTA-156	产品特性	Feed Through
制造商全称	MTA-156Series

环境参数

工作温度

+105°C
