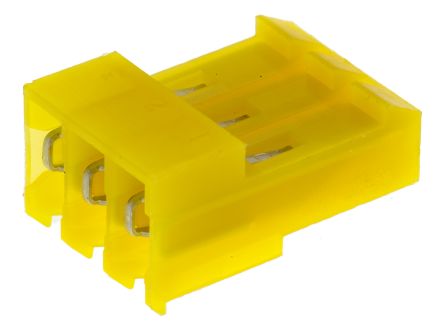

点击放大查看
3-640427-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount Headers & Wire Housings CLOSED W/O TABS 3P L.R. yellow 20 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 20AWG MTA156 MTA 156 3 way SKT 20AWG Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;3;IDCStandard;LockingRamp;90deg;Nylon;0.156in. Plug; wire-board; female; PIN:3; 3.96mm; IDC; for cable; MTA-156 Cable socket, straight 3P, 3-640427-3, TE Connectivity TE Connectivity MTA-156 系列 3路 3.96mm节距 直角 母 IDC 连接器 , 电缆安装 03P MTA156 CONN ASSY 20AWG YEL |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 认证机构 | CSA,UL |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | UL阻燃等级 | UL 94V-2 |
| 材料阻燃等级 | UL94V-2 | ||
电气参数
| 额定电压 | 600 VAC | 极数 | 3 |
| 开关功能 | Locking Ramp | 供电电压 | 600 |
| 接触电阻 | 3 mohm | 连接器阻抗 | 刺破式压接 (IDC) |
| 最大额定电流 | 7 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Yellow | 深度 | 9.02 mm |
| 间距 | 3.96 mm | 高度 | 18.42 mm |
| 长度 | 11.89 mm [ .468 in ] | 密封型 | Not Sealed |
| 重量 | 1.46 g | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 壳体颜色 | 黄色 |
| 电缆类型 | 分离式导线 | 导线线规 | 20 |
| 方向 | 直角 | 端接方式 | IDT |
| 触头类型 | Female Socket | 柱间距 | 3.96mm |
| 基体材料 | polyamide | 外壳颜色 | Yellow |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Tin Over Nickel |
| 触点时序 | Without | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 引脚数 | 3 |
| 排数 | 1 | 封装形式 | Receptacle |
| 壳体镀层 | Nickel | 外壳材料（壳体） | 标准外形 |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 总长度 | 11.89 mm |
| 包装数量 | 1 | 面板安装类型 | 不带 |
| 主要材料 | InterconnectSystem | 端接排数 | IDC |
| 电缆端接方式 | IDC | 连接器 - 电缆 | plug |
| 插针孔直径 | 0.156" | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 连接器颜色 | yellow |
| 触点数 | 3 | 接触件端接 | Locking Lance |
| 绝缘直径 | 0.095"(Wire) | 位数 | 3 |
| 第一连接器极性 | Female | 兼容外壳尺寸（如TM-700等） | MTA .156 公端 |
| 安装孔直径 | 不带 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 直插式 | 接触镀层厚度 | 80µin (2.03µm) |
| 触点材料 - 镀层 | tinned | 静电放电屏蔽 | 带有 |
| 护套（绝缘）厚度 | 30 µm [ .762 µin ] | 第一连接器安装特征 | 1x3 |
产品信息
| SPG | 1 | 类型 | IDC Connector |
| 连接器性别 | F | 系列 | MTA-156 |
| 产品特性 | Closed End | 制造商全称 | MTA-156Series |
| 产品子类型 | Receptacles / Sockets - Housings | 适配器系列 | MTA-156 |
| 放大器类型 | 11.89 | 单元数量 | 1 |
| 安装类型 | Closed End | 输出配置 | 90° |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | +105°C |
