640387-3

点击放大查看

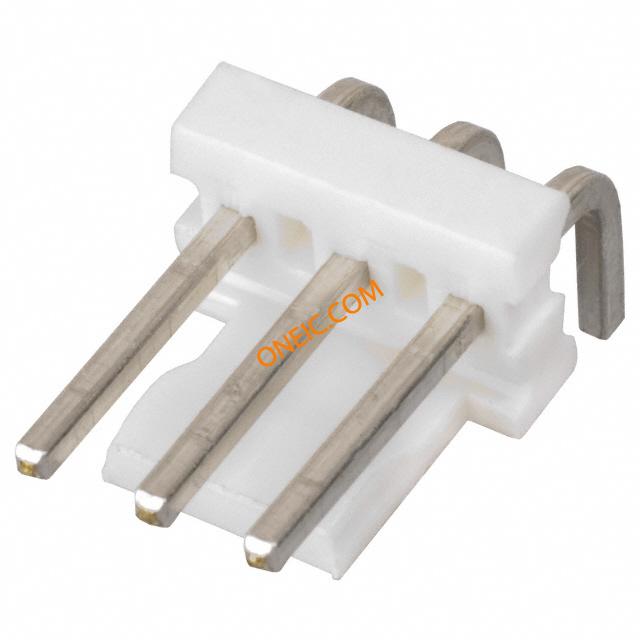

640387-3

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 3POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings POLARIZED HDR RA 3P Square post tin Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-156HEADER-TIN,03PMTA156HDRASSYSQR/A TE Connectivity MTA-156 系列 3.96mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 03P MTA156 HDR ASSY SQ R/A
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
UL等级获得认可零件状态E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedUL阻燃等级UL 94V-0
材料阻燃等级UL 94 V-0

电气参数

额定电压600 V ac开关功能Friction Lock
供电电压600接触电阻3 mohm
最大额定电流7A最小输入电压600VAC
最小供电电压600VAC

机械参数

颜色Natural深度17.32 mm
间距3.96 mm高度7.62 mm
长度11.89 mm [ .468 in ]密封型Not Sealed
包装方式Bulk方向直角
端接方式Solder触头类型Male Pin
外壳颜色White安装类型Right Angle
连接器类型Header, Unshrouded接触镀层Tin
触点时序Without紧固类型Friction Lock
安装样式Through Hole引脚数3
排数1封装形式Plug
壳体镀层Nickel插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
总长度11.89 mm包装数量1250
面板安装类型通孔 - 焊接主要材料InterconnectSystem
端接排数焊接端接样式Through Hole
第一触头极性Pin (Male)触点数3
位数3兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局直插式接触长度 - 配合0.400" (10.16mm)
端子柱长度3.18 mm接触镀层厚度100 µm [ 2.54 µin ]
静电放电屏蔽不带直角致动器长度Rear

产品信息

类型Wire to Board连接器性别HDR
系列MTA-156覆盖范围无覆盖
制造商全称MTA-156产品子类型Headers
应用细节Wire-to-Board加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 105C
封装热阻1.6 mm [ .063 in ]

相关型号

3-644082-3

3-644082-3

te connectivity / amp

Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 18AWG MTA-156 Headers & Wire Housings 03P MTA156 CONN ASSY 18AWG LF 03P MTA156 CONN ASSY 18AWG LF

¥0.9360
详情
640604-3

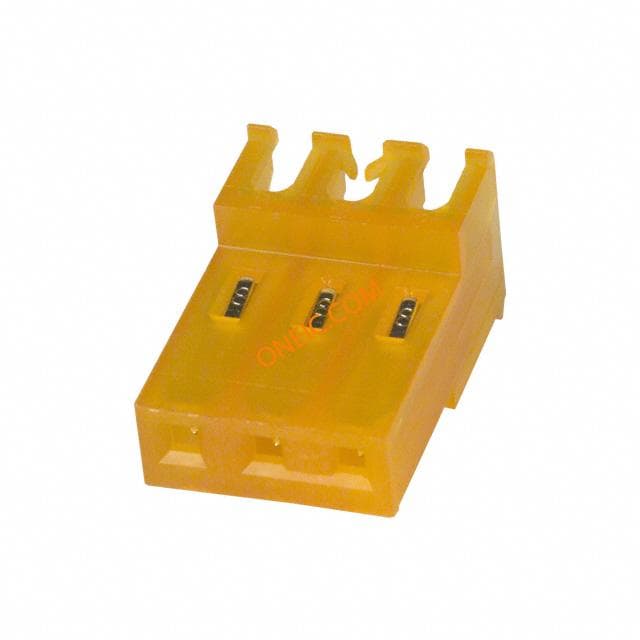

640604-3
