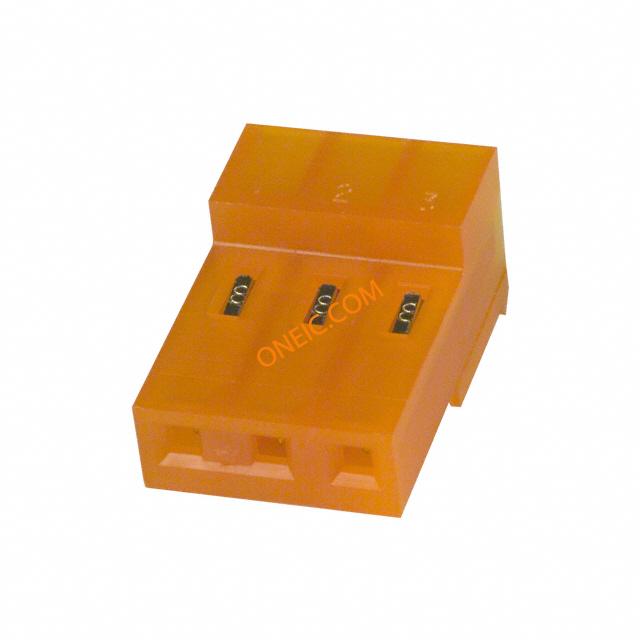

3-640431-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 18AWG MTA156 Headers & Wire Housings CLOSED W/O TABS 3P Orange 18 AWG Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 3.96MM MTA-156Connector,Receptacle,3Pos.,ClosedEnd,IDC,18AWG,Orange 03P MTA156 CONN ASSY 18AWG ORA |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | CSA,UL | 材料阻燃等级 | UL94V-2 |
电气参数
| 额定电压 | 600 VAC | 开关功能 | Ramp Lock |
| 接触电阻 | 3 mohm | 最大额定电流 | 7 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Orange | 深度 | 9.02 mm |
| 间距 | 3.96 mm | 高度 | 18.42 mm |
| 重量 | 0.00001 | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 导线线规 | 18 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 外壳颜色 | Orange | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Tin Over Nickel | 安装样式 | Wire |
| 排数 | 1 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 总长度 | 11.89 mm |
| 主要材料 | InterconnectSystem | 电缆端接方式 | IDC |
| 插针孔直径 | 0.156" | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 3 |
| 接触件端接 | :IDC / IDT | 绝缘直径 | 0.095"(Wire) |
| 位数 | 3 | 接触镀层厚度 | 80µin (2.03µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | MTA-156 | 产品特性 | Closed End |
| 制造商全称 | MTA-156Series | 产品子类型 | Connector Assemblies |
环境参数
| 工作温度 | -55C to 105C | ||
