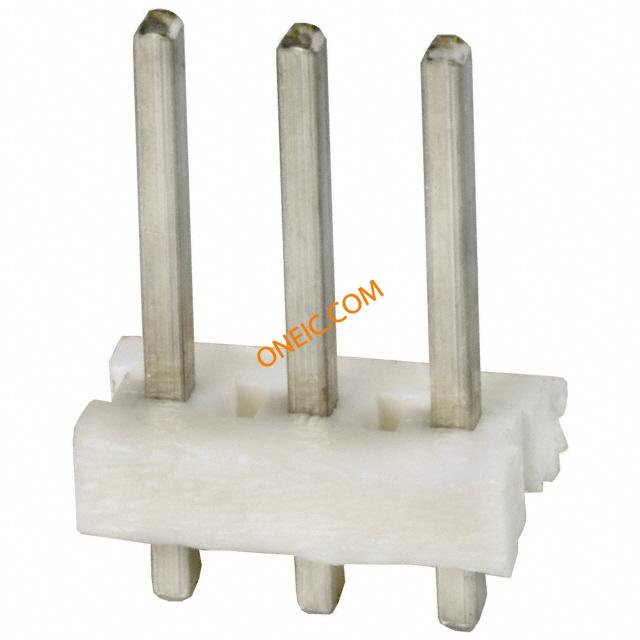

640383-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 3P Square post tin Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONN, HEADER, 3WAY, 0.156IN 03P MTA156 HDR ASSY STR SQ SN |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 600 V | 接触电阻 | 3 mohm |
| 最大额定电流 | 7 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Natural | 深度 | 6.35 mm |
| 间距 | 3.96 mm | 高度 | 13.34 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | White | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin Over Nickel |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 总长度 | 11.89 mm | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 接触件端接 | :Through Hole Vertical | 位数 | 3 |
| 接触长度 - 配合 | 0.400" (10.16mm) | 端子柱长度 | 3.18 mm |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | MTA-156 | 产品子类型 | Headers |
| 应用细节 | Wire-to-Board | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
