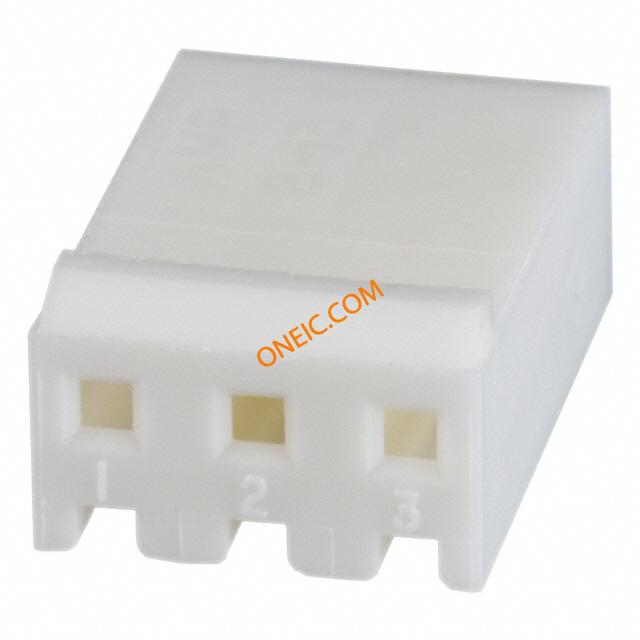

640250-3

点击放大查看

640250-3

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 3 POS 3.96mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3 POS W/RAMP SL-156 3w housing without polarising tabs Connector; Receptacle; 3; Crimp; Locking Ramp; 180 deg; Nylon; SL-156 Housings Headers & Wire Housings 3P HOUSING W/LCK RMP SL156 Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 3Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;3;Crimp;LockingRamp;180deg;Nylon;SL-156Housings Plug; wire-board; female; PIN:3; w/o terminals; 3.96mm; for cable Socket housing, straight 3P, 640250-3, TE Connectivity TE Connectivity SL-156 系列 3.96mm 节距 3 路 直 母 压接连接器外壳 03P SL156 HSG W/LCK RAMP NATL
分类
连接器解决方案矩形连接器高可靠性矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量500

合规参数

RoHSLead free / RoHS Compliant标准UL94V-0FlammabilityRating,RoHSCompliant,ELVCompliant
UL等级已获认证无铅定义Not relevant for lead free process
UL档案号E28476认证机构CSA,UL
CSA档案号LR 7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V极数3
开关功能Locking Ramp供电电压250 VAC
连接器阻抗压接最大额定电流5 A
最小供电电压250VAC连接器类型 - 电压输入w/o terminals

机械参数

颜色Natural深度16.76mm
间距3.96 mm宽度7.27mm
高度7.27 mm长度11.81mm
重量0.83 g包装方式Bulk
遮蔽类型No壳体颜色自然
出线方向180°导线线规16-24 AWG
方向直排间距0.156in.
端接方式Crimp触头类型Female Socket
柱间距3.96mm第二连接器With
外壳颜色White安装类型Straight
行程角度Straight连接器类型Crimp
紧固类型Locking Ramp安装样式Free Hanging
排数1外壳材料（壳体）标准
连接器用途Receptacle高度（英寸）6.35
锁定特性Locking Ramp触头材料CuSn
壳体材料Nylon总长度11.81 mm
安装特性Without包装数量1
面板安装类型Without主要材料InterconnectSystem
导线端接方式Crimp连接器 - 电缆plug
插针孔直径0.156"端接样式Crimp
第一触头极性Socket (Female)配接方向Without
触点数3端接表面处理不带
接触件端接Crimp绝缘直径Standard
位数3第一连接器极性Female
兼容外壳尺寸（如TM-700等）SL .156 端子安装孔直径不带
典型触点布局3.96 [0.156]静电放电屏蔽不带
第一连接器安装特征1x3

产品信息

SPG1备注Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2.
类型Housing连接器性别RCP
系列SL-156可密封否
CAD图纸3D CAD Model制造商全称AMP
产品子类型SL-156 Housings适配器系列SL-156
放大器类型11.89单元数量1
应用细节Wire-to-Board适用产品/相关产品Wire-to-Board Economy Power Connector

环境参数

工作温度-55C to 105C

文档与媒体

在线文档
640250-3

相关型号

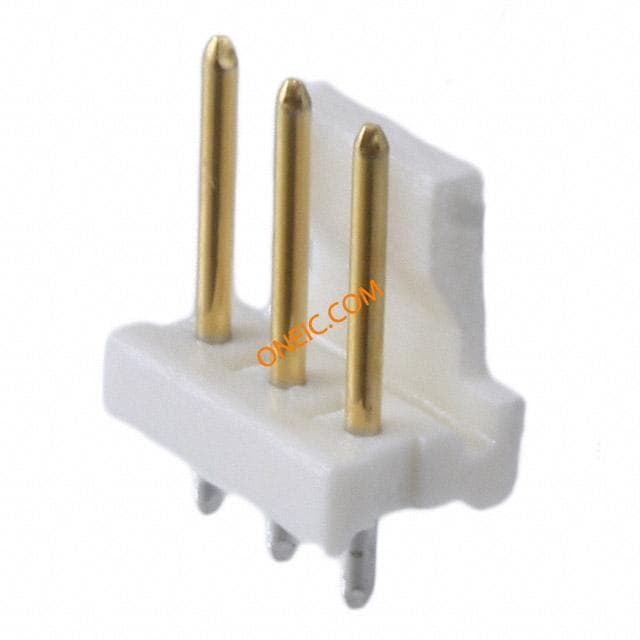

3-641208-3

3-641208-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS .156 30 GOLD TE Connectivity MTA-156 Series 3.96mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 3P Square post gold Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:3 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-156HEADERGOLD,03PMTA156HDRASSYFLSTLF TE Connectivity MTA-156 系列 3.96mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 03P MTA156 HDR ASSY FL ST LF

¥3.7121
详情

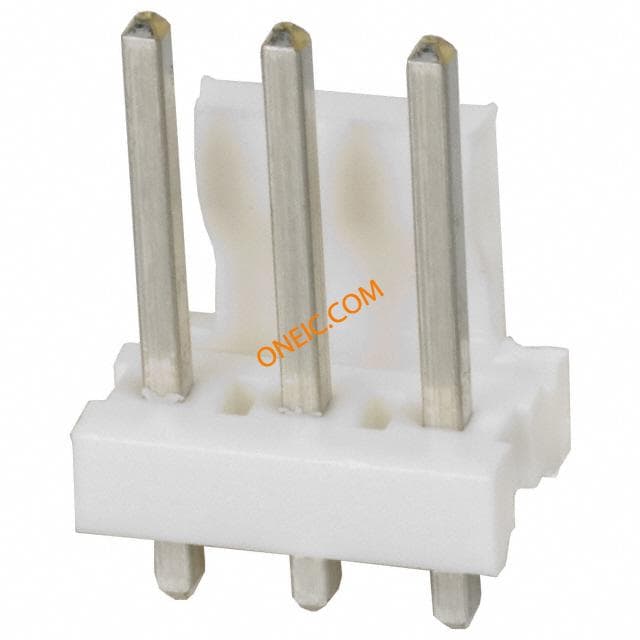

640445-3

640445-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 3P Square post tin Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 3WAY Connector,MTA-156;Male;3;CopperAlloy;7;600;0.156in.;Polyester;White Connector: wire-board; Series: MTA-156; 3.96mm; male; socket; PIN:3 Pin header straight 3P, 640445-3, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 03P MTA156 HDR ASSY FL/STR SN

¥0.4284
详情
644749-8

644749-8

te connectivity / amp

Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 TIN Headers & Wire Housings 156IDCW HDR 1X08P VRT T/H Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY STR SQ SN

¥1.6320
详情
641208-3

641208-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 3POS 30AU Headers & Wire Housings FRCTN LK HDR STR 3P Square post gold Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY FL ST 30AU

¥3.6040
详情

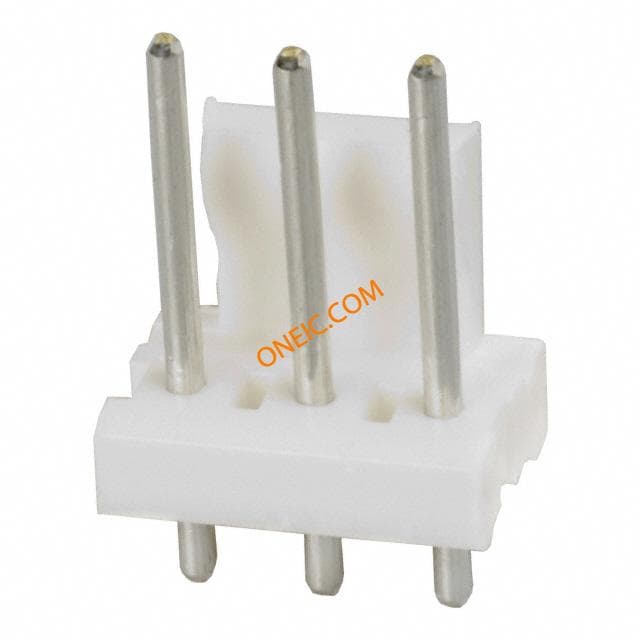

644753-3

644753-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN Headers & Wire Housings 3P HDR ASSY RN STR Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY RN STR F/L

¥0.6800
详情

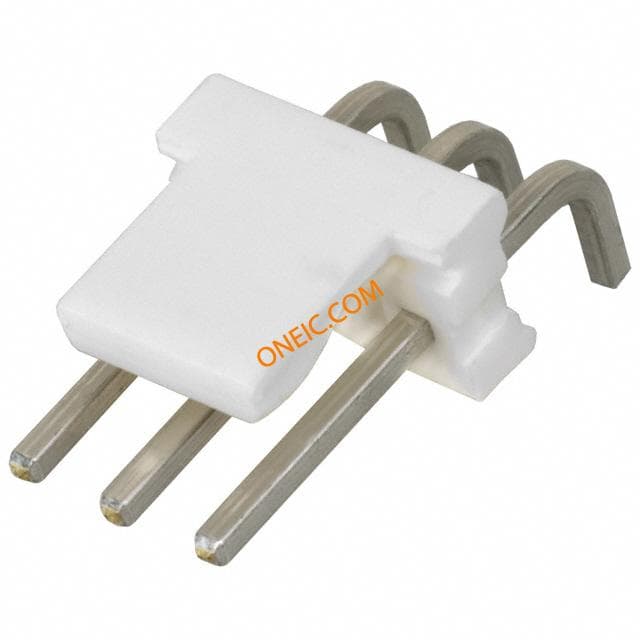

640389-3

640389-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 3POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 3P Square post tin Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.156", 3WAY Connector,MTA-156;Male;3;CopperAlloy;7;600;0.156in.;Polyester;White TE Connectivity MTA-156 系列 3.96mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 03P MTA156 HDR ASSY SQ R/A F/L

¥1.1907
详情
644749-3

644749-3

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS .156 STR TIN Headers & Wire Housings 03P MTA156 HDR ASSY Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY STR SQ SN

¥0.7480
详情

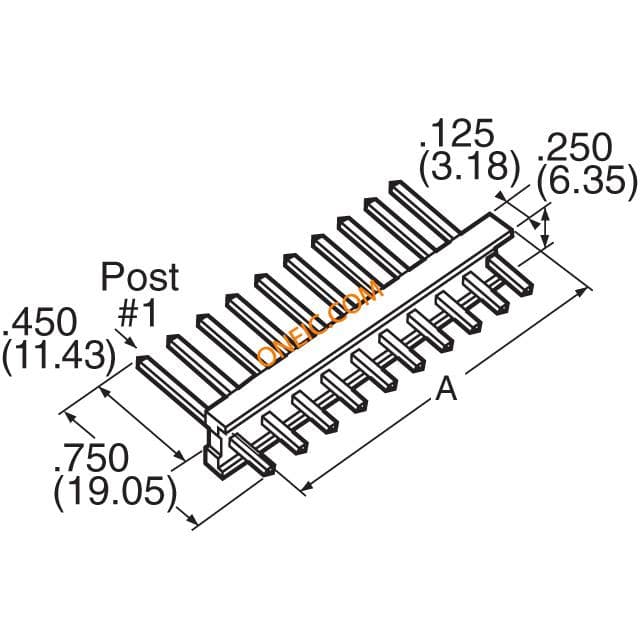

640384-3

640384-3

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY STR RND SN

¥0.7779
详情
644759-3

644759-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 GOLD Headers & Wire Housings 3P MTA156 HEADER

¥3.5639
详情
640388-3

640388-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 3P Round post tin Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, 3.96MM, 3WAY Connector,MTA-156;Male;3;CopperAlloy;7;600;0.156in.;Polyester;White TE Connectivity MTA-156 系列 3路 3.96mm节距 (1排) 直 PCB 针座 , 焊接端接, 7A, 通孔 03P MTA156 HDR ASSY RN STR F/L

¥0.5182
详情
644752-3

644752-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN Headers & Wire Housings 03P MTA156 HDR ASSY Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector3 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 3POS, 3.96MM MTA-156HEADER-TIN,03PMTA156HDRASSYSQSTRF/L 03P MTA156 HDR ASSY SQ STR F/L

¥0.6460
详情
641210-3

641210-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 3POS 30AU Headers & Wire Housings FRCTN LK HDR RA 3P Square post gold Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole Product Highlights:3 PositionsPreloadedHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HRD FL RA FB 30AU

¥4.2840
详情

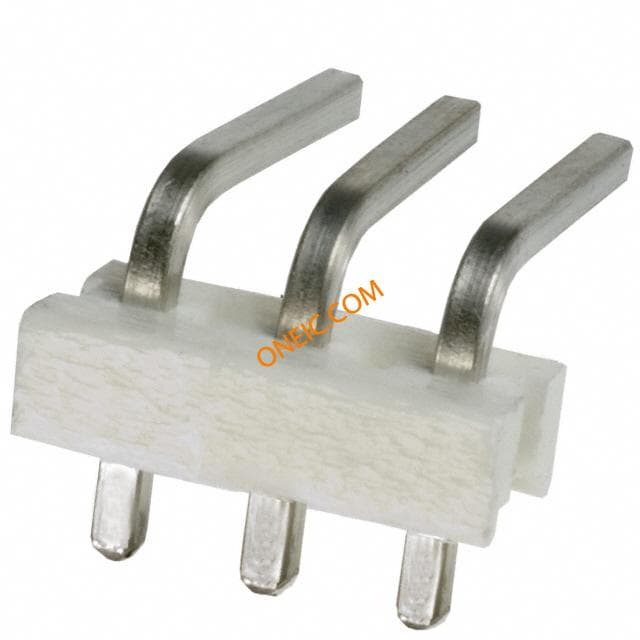

640385-3

640385-3

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 3POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 3P Square post tin Conn Unshrouded Header HDR 3 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY SQ R/A

¥0.7276
详情

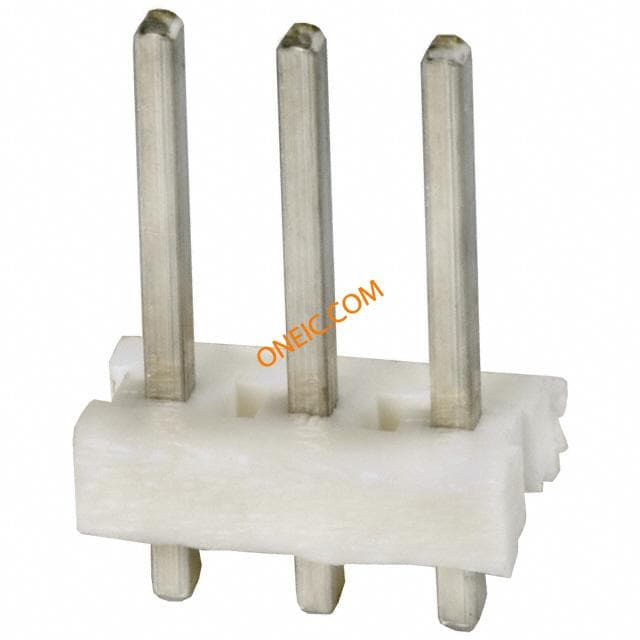

640383-3
