6-104069-2

点击放大查看

6-104069-2

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 24 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 24POS .050" R/A GOLD Headers & Wire Housings 24 POS HDR R/A DUAL ROW Conn Shrouded Header HDR 24 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Connector Type = Header - Pin24 PositionsNumber of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 1.27mm节距 24路 (2排) 直 PCB 针座, 焊接端接 , 通孔 24 sys 50 hdr drra shrd sn
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量23

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压30 VAC供电电压30
额定交流电压30连接器阻抗制动器闭锁
击穿电压500最大额定电流1
绝缘电阻5,000最小供电电压30VAC
保护额定电压（VPR）500 V

机械参数

颜色Black深度13.72 mm
间距1.27 mm高度8.89 mm
底座类型带有包装方式Tube
遮蔽类型Yes壳体颜色黑色
引脚样式圆形方向直
排间距0.100" (2.54mm)稳定剂Without
端接方式Solder引脚间距0.100" (2.54mm)
第二连接器With外壳颜色Black
安装类型Right Angle连接器类型Shrouded
接触镀层Gold Over Nickel安装样式Thru Hole
排数2外壳材料（壳体）2- 面
高度（英寸）0.350" (8.89mm)插入件材料铜合金
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度21.59 mm安装特性压具柱体
包装数量Tube面板安装类型通孔
端接排数焊接端接样式Through Hole
外径.381 mm [ .015 in ]板面高度0.125" (3.18mm)
触点数24端接表面处理带罩
位数24触头长度-柱0.350" (8.89mm)
安装孔直径带有接触长度 - 配合0.125" (3.18mm)
端子柱长度2.54 [0.100]接触镀层厚度30µin (0.76µm)
静电放电屏蔽不带每排/每行位置数All
端接镀层厚度150 – 250

产品信息

备注Note 1: Hold down posts located as shown for 16 through 100 position headers.;类型Shrouded Header
连接器性别HDR系列AMPMODU System 50
覆盖范围覆盖钥匙类型否
制造商全称AMP产品子类型Header Assembly
选择性装载No输出配置Through Hole, Right Angle
加载位置数All

环境参数

密封等级不带温度范围-65 – +105
工作温度-65C to 105C封装热阻1.397 mm [ .055 in ]

相关型号

2-487938-4

2-487938-4

te connectivity / amp

Conn Housing RCP 24 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 24POS .050 DUAL ROW FFC & FPC Connectors 024 HOUSING 50CL DR .050 X .100 AMPMODU System 50 Product Highlights:HousingHousing Type = Housing - Receptacle24 PositionsNumber of Rows = DualWith Mating Connector LockSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 024 HOUSING FFC 50CL DR

¥12.3080
详情
5-104078-9

5-104078-9

te connectivity / amp

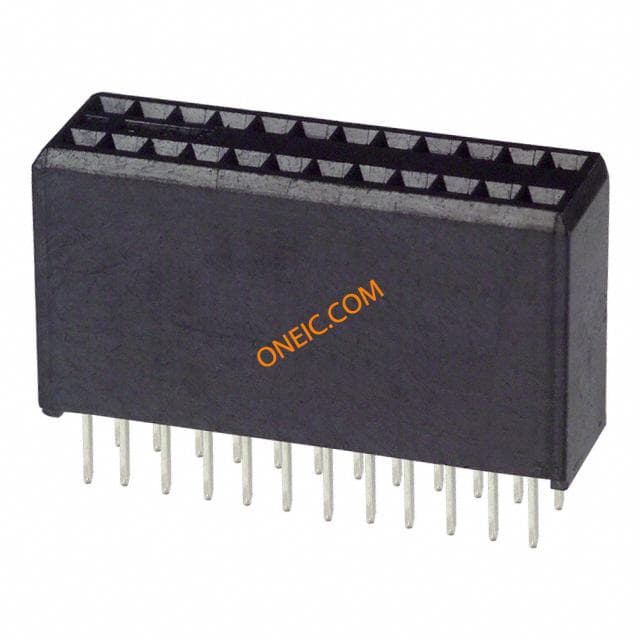

Conn Socket Strip RCP 24 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 24POS VERT DUAL 30AU Board to Board & Mezzanine Connectors 24 POS RECEPT VERT DUAL ROW Conn Socket Strip RCP 24 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Connector Type = Connector - Receptacle24 PositionsNumber of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 24 SYSTEM 50 RCPT ASSY DRST SN

¥23.4600
详情
111196-5

111196-5

te connectivity / amp

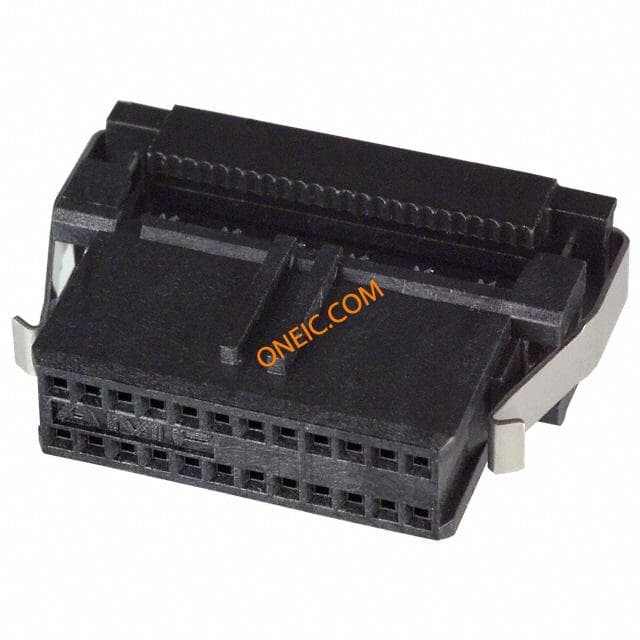

Conn IDC Connector RCP 24 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 24POS .050X.100 IDC Headers & Wire Housings RECPT SYSTEM 50 900 Conn IDC Connector RCP 24 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 24Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 024 RCPT SYSTEM 50 30 DPLX
