2-487938-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 24 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 24POS .050 DUAL ROW FFC & FPC Connectors 024 HOUSING 50CL DR .050 X .100 AMPMODU System 50 Product Highlights:HousingHousing Type = Housing - Receptacle24 PositionsNumber of Rows = DualWith Mating Connector LockSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 024 HOUSING FFC 50CL DR |
| 分类 |
商业参数
| 标准包装规格 | 600 | 产品类别 | FFC & FPC Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 100V | 供电电压 | 100 |
| 输入电阻 | 5000 | 钳位电压 | 300 |
| 连接器阻抗 | 制动器窗口 | 击穿电压 | 300 |
| 最大额定电流 | 1.5A | 绝缘电阻 | 5,000 |
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 电缆类型 | Flexible Flat Conductor Cable |
| 第二连接器 | With | 边缘接触 | No |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing for Female Contacts | 排数 | 2 |
| 连接器用途 | Receptacle | 插入力 | Normal |
| 锁定特性 | Detent Windows | 壳体材料 | Thermoplastic |
| 总长度 | 1.27 [0.050] | 包装数量 | 500 |
| 面板安装类型 | 不带 | 端接样式 | 插座 |
| FFC/FCB厚度 | 0.05-0.08mm | 触点数 | 24 |
| 位数 | 24 | 安装孔直径 | 不带 |
产品信息
| 备注 | Note 1: Plain housings are side-to-side stackable on either straight or right-a | 类型 | Housing |
| 连接器性别 | RCP | 产品特性 | Detent Lock |
| 产品子类型 | Housing | 扁平柔性类型 | FFC |
环境参数
| 温度范围 | -55 â +105 | 工作温度 | -55°C ~ 105°C |
文档与媒体
相关型号
1-104069-2
te connectivity / amp

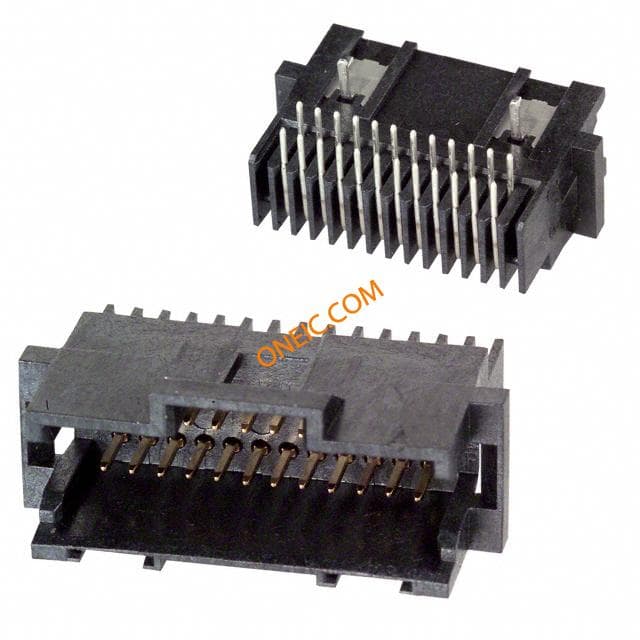

Conn Shrouded Header HDR 24 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER R/A .050 24POS 30AU Headers & Wire Housings RA DUAL HDR 24P 1012 24 SYSTEM 50 HDR DRRA SHRD
