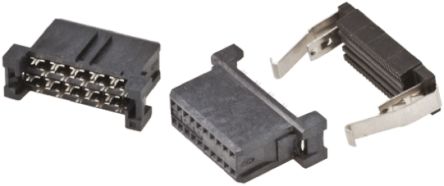

2-111196-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 24 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 24POS .050X.100" IDC Headers & Wire Housings 24 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 24 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 24Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU WIRE-BOARD CONNECTOR RECEPTACLE 24POS, 1.27MM CONNECTOR,RECEPTACLE,AMPMODUSYSTEM50,DUALROW,MATINGCONNECTORLOCK TE Connectivity AMP-LATCH System 50 系列 2行 24路 1.27mm节距 母 IDC 连接器 , 电缆安装 024 RCPT SYSTEM 50 30 DPLX |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 60 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 量程（°/s） | :TE - AMPMODU System 50 Series | 额定电压 | 30 V |
| 开关功能 | Latch | 接触电阻 | 30 mohm |
| 最大额定电流 | 500 mA | 绝缘电阻 | 5000 MOhms |
| 最小供电电压 | 30VAC | ||
机械参数
| 颜色 | Black | 深度 | 6.45 mm |
| 间距 | 1.27 mm | 高度 | 14.73 mm |
| 重量 | 0.005 | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 30-32 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 21.84 mm | 主要材料 | InterconnectSystem |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 24 |
| 接触件端接 | :IDC / IDT | 位数 | 24 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 系列 | AMP | 产品特性 | Feed Through |
| 制造商全称 | AMPMODU/System50 | 产品子类型 | Receptacles / Sockets - Housings |
环境参数
| 工作温度 | -65C to 105C | ||
