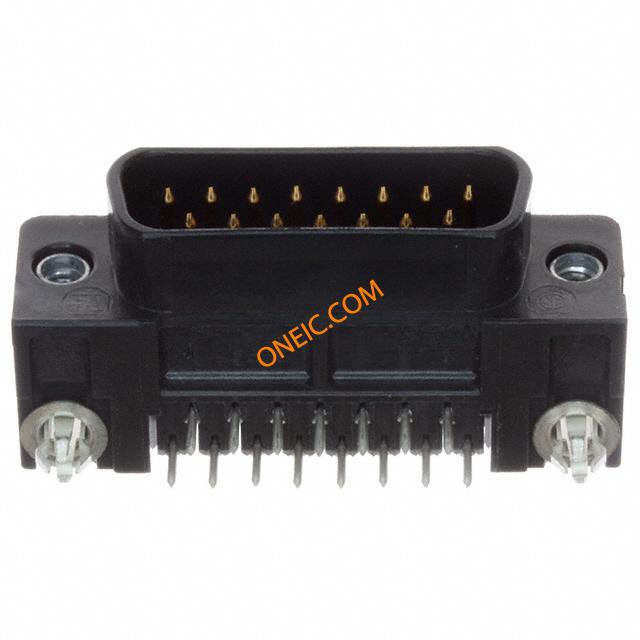

5748904-1

点击放大查看

5748904-1

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 15 POS 2.76mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors DSUB A15P RA318 Standard Board Mount Connectors CONN D-SUB PLUG R/A 15POS Conn D-Subminiature PIN 15 POS 2.76mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:15 PositionsConnector Style = PlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, PLUG AMP III PLUG 15P RA 318 THD IN
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量104

合规参数

RoHSRoHS Compliant海关税号00000000
抗辐射加固No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without量程（°/s）:TE CONNECTIVITY - Amplimite HD-20 Series
额定电压125V

机械参数

颜色Black深度18.69 mm
间距2.76 mm高度11.48 mm
密封型No重量0
镀层Tin材料（通用）Copper Alloy
包装方式Tray外壳尺寸2
端接方式Solder触头类型Signal
第二连接器With安装类型Through Hole
连接器类型Plug, Male Pins接触镀层Gold
法兰特征Housing/Shell (4-40)接地类型Without
尖端材料（笔尖）Tin安装样式Through Hole
排数2电路板厚度0.062 [1.57]
连接器样式D-Sub插入件材料Zinc
锁定特性Threaded Inserts本体材料:Plastic
材料表面处理Clear Chromate外形（宽 x 高）Standard
触头材料Copper Alloy壳体材料Thermoplastic
总长度39.37 mm面板安装类型Without
接地凹痕Without外形尺寸 长x宽x高8.08 [.318]
端接样式Solder连接器颜色None
触点数15接触件端接:Through Hole Vertical
位数15外壳尺寸-插件All Plastic
安装孔直径3.18 [.125]端子柱长度3.18 [0.125]
接触镀层厚度30µin (0.76µm)外壳尺寸，连接器布局2 (DA, A)

产品信息

类型D-Subminiature连接器性别PIN
系列HD-20产品特性Board Lock
制造商全称AMP端口数1 Port

环境参数

工作温度-55°C ~ 105°C
