5745782-2

点击放大查看

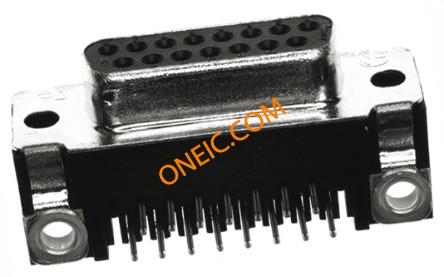

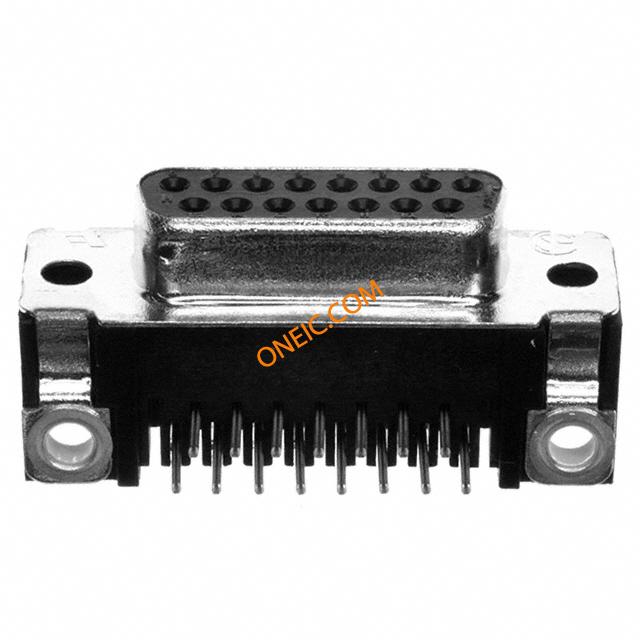

5745782-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15 MSFL RCPT RA 318 (FM) Standard Board Mount Connectors CONN D-SUB RCPT R/A 15POS 30GOLD AMPLIMITE HD-20 Socket Right Angle 15P Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBSocket;15Pos;RTAng;HD-20Series;20AWG;FrontMetalShell CONN D-SUB 15 MSFL RCPT RA 318 (FM)
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量104

合规参数

RoHSRoHS Compliant欧盟RoHSCompliant
抗辐射加固No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A最小输入电压125VDC|125VAC
最小供电电压125VDC/125VAC

机械参数

颜色Black深度18.79 mm
间距2.74 mm高度12.54 mm
密封型No外形尺寸(长x宽)2
占位面积8.08 [.318]包装方式Tray
引脚样式Round外壳尺寸2
端接方式Solder触点形式Signal
触头类型Signal柱间距.108
外壳表面处理锡第二连接器Without
触点形状Round安装类型Through Hole
外壳镀层Tin连接器类型Receptacle, Female Sockets
接触镀层Gold法兰特征Housing/Shell (Unthreaded)
接地类型With尖端材料（笔尖）Tin
安装样式Through Hole排数2
壳体镀层锡外壳材料（壳体）Steel
电路板厚度0.093 [2.36]连接器样式D-Sub
插入件材料磷青铜磁芯材质黄铜
外形（宽 x 高）Standard触头材料Phosphor Bronze
壳体材料Thermoplastic总长度39.14 mm
安装特性安装孔包装数量104
面板安装类型Without尺寸/外形0.66 [.026]
接地凹痕Without端接样式Through Hole
第一触头极性SKT连接器颜色None
外径.66 mm [ .026 in ]触点数15
位数15外壳尺寸-插件Front Metal Shell
安装孔直径3.18 [.125]外壳材料及表面处理Steel, Tin Plated
端子柱长度3.18 [0.125]接触镀层厚度30µin (0.76µm)
触点材料 - 镀层锌外壳与棱镜材料否
外壳尺寸，连接器布局2 (DA, A)

产品信息

备注All receptacles are preloaded with size 20 DF posted socket contacts类型D-Subminiature
连接器性别SKT系列HD-20
产品特性Ground Strap可密封否
主要用途Ground Strap预装是
产品子类型连接器端口数1

环境参数

工作温度-55°C ~ 105°C封装热阻1.58 mm [ .062 in ]

文档与媒体

在线文档
5745782-2?RQPN=5745782-2
在线文档
TE.Connect?C=1&PN=745782-2&M=BYPN&LG=1&I=13
