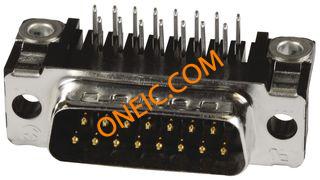

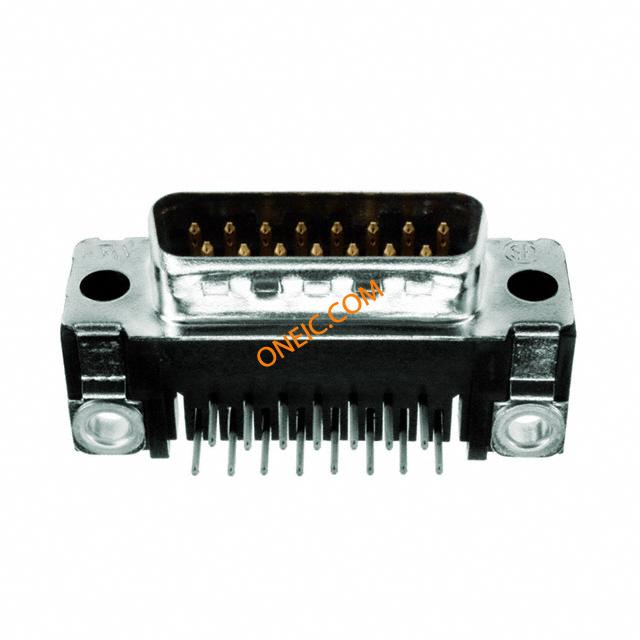

5747236-2

点击放大查看

5747236-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15 MSFL PLUG RA 318 (FM) Standard Board Mount Connectors CONN DSUB PLUG 15 POS R/A GOLD Standard Board Mount Connectors Product Highlights:Number of Positions = 15PlugPCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 15 MSFL PLUG RA 318 (FM)
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格104产品类别D-Sub Standard Connectors
标准包装数量Bulk工厂包装数量104

合规参数

RoHSRoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A

机械参数

颜色Black间距2.74 mm
密封型No外形尺寸(长x宽)2
占位面积8.08 [.318]包装方式Tray
壳体颜色黑色引脚样式Round
外壳尺寸2端接方式Solder
触头类型Signal柱间距.108
外壳表面处理铜镀锡第二连接器Without
触点形状Round安装类型Through Hole
外壳镀层Tin连接器类型Plug, Male Pins
接触镀层Gold法兰特征Housing/Shell (Unthreaded)
接地类型With尖端材料（笔尖）Tin
安装样式Through Hole排数2
壳体镀层锡外壳材料（壳体）Steel
电路板厚度0.093 [2.36]连接器样式D-Sub
插入件材料黄铜磁芯材质黄铜
外形（宽 x 高）Standard触头材料Brass
壳体材料Thermoplastic安装特性安装孔
包装数量104面板安装类型Without
尺寸/外形0.66 [.026]接地凹痕With
端接样式Through Hole连接器颜色None
外径.66 mm [ .026 in ]触点数15
位数15外壳尺寸-插件Front Metal Shell
安装孔直径3.18 [.125]外壳材料及表面处理Steel, Tin Plated
端子柱长度3.18 [0.125]接触镀层厚度Flash
触点材料 - 镀层锌外壳与棱镜材料否
外壳尺寸，连接器布局2 (DA, A)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别PIN系列HD-20
产品特性Ground Strap, Grounding Indents可密封否
预装是产品子类型连接器

环境参数

工作温度-55°C ~ 105°C封装热阻1.57 mm [ .062 in ]
