点击放大查看

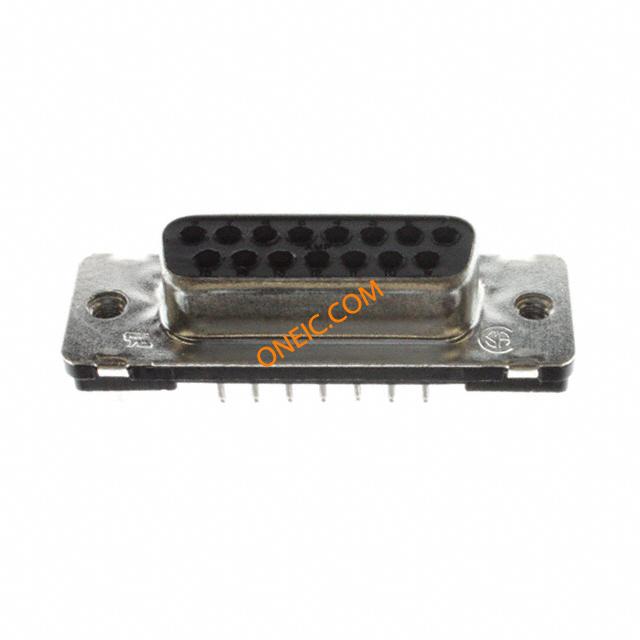

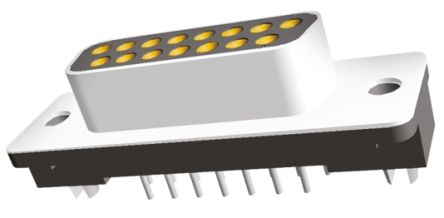

2-5747707-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors A15S V/MNT Standard Board Mount Connectors CONN D-SUB RCPT STR 15POS PCB AU Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:15 PositionsReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBSocket;15Pos;STR;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.743mm 节距 15 路 直向 印刷电路板安装 PCB D-sub 连接器 插座 15 RCPT SP/FMS BRDLK |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 13 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 标准 | UL E28476 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 最大额定电流 | 6A | 最小供电电压 | 250VDC/250VAC |
机械参数
| 颜色 | Black | 深度 | 12.54 mm |
| 间距 | 2.74 mm | 宽度 | 0.494in |
| 高度 | 12.16 mm | 长度 | 1.54in |
| 密封型 | No | 外形尺寸(长x宽) | 2 |
| 包装方式 | Tube | 屏蔽 | 是 |
| 壳体颜色 | 黑色 | 引脚样式 | Round |
| 外壳尺寸 | 2 | 方向 | 直 |
| 端接方式 | Solder | 触点尺寸 | 2 |
| 触头类型 | Signal | 柱间距 | .108 |
| 外壳表面处理 | 锡 | 第二连接器 | Without |
| 触点形状 | Round | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.062 [1.57] | 连接器样式 | D-Sub |
| 插入件材料 | Brass | 外形（宽 x 高） | Standard |
| 屏蔽材料 | 钢 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 39.14 mm |
| 安装特性 | 4-40 固定插入件 | 包装数量 | 13 |
| 面板安装类型 | Without | 尺寸/外形 | 0.66 [.026] |
| 接地凹痕 | Without | 端接样式 | Solder |
| 连接器颜色 | None | 外径 | .66 mm [ .026 in ] |
| 触点数 | 15 | 位数 | 15 |
| 外壳尺寸-插件 | Front Metal Shell | 安装孔直径 | 3.07 [.121] |
| 外壳材料及表面处理 | Steel, Tin Plated | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | 30µin (0.76µm) | 触点材料 - 镀层 | 黄铜 |
| 外壳与棱镜材料 | 否 | 后壳材料及镀层 | 铜镀锡 |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 备注 | All receptacles are preloaded with size 20 DF posted socket contacts | 类型 | D-Subminiature |
| 连接器性别 | SKT | 系列 | HD-20 |
| 产品特性 | Board Lock | 可密封 | 否 |
| 制造商全称 | AMP | 预装 | 是 |
| 产品子类型 | 连接器 | 端口数 | 1 Port |
| 其他规格 | 4-40 UNC 印刷电路板固定插件 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 1.57 mm [ .062 in ] |
