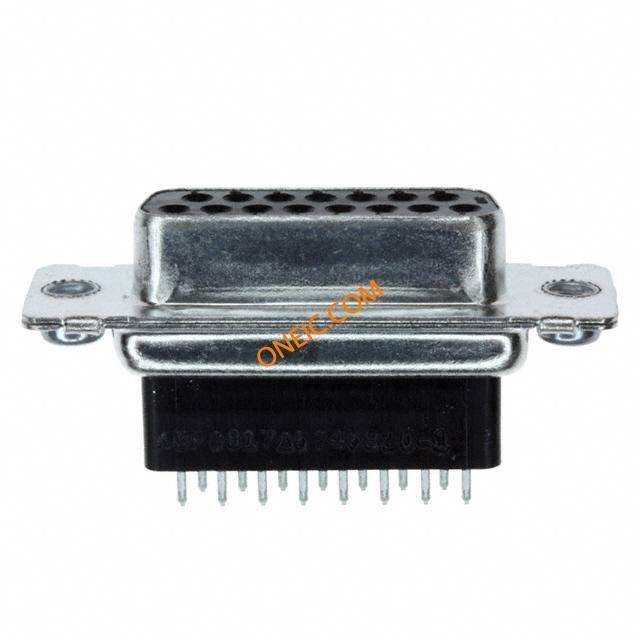

5745820-1

点击放大查看

5745820-1

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15 RCPT SP/MS CNUT Standard Board Mount Connectors CONN D-SUB RCPT STR 15POS PCB AU Standard Board Mount Connectors Product Highlights:15 PositionsHousing Gender = ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 15 RCPT SP/MS CNUT
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格13产品类别D-Sub Standard Connectors
标准包装数量Rail / Tube工厂包装数量13

合规参数

RoHSRoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
连接器阻抗箝紧螺母，4-40 UNC最大额定电流6A

机械参数

颜色Black间距2.74 mm
密封型No外形尺寸(长x宽)2
包装方式Tube屏蔽否
壳体颜色黑色引脚样式直角
外壳尺寸2螺母镀层Zinc
端接方式Solder触头类型Signal
螺母材料Steel柱间距.108
外壳表面处理锡第二连接器With
触点形状Square安装类型Through Hole
外壳镀层Tin连接器类型Receptacle, Female Sockets
接触镀层Gold法兰特征Board Side (4-40)
接地类型Without安装样式Through Hole
排数2外壳材料（壳体）Steel
电路板厚度0.062 – 0.093 [1.57 – 2.36]连接器样式D-Sub
插入件材料Thermoplastic锁定特性Clinch Nut, 4-40 UNC
外形（宽 x 高）High触头材料Phosphor Bronze
壳体材料Polyamide (PA), Nylon, Glass Filled包装数量13
面板安装类型Without尺寸/外形0.64 [.025]
接地凹痕Without端接样式Solder
连接器颜色None外径.64 mm [ .025 in ]
触点数15位数15
外壳尺寸-插件Full Metal安装孔直径3.05 [.120]
外壳材料及表面处理Steel, Tin Plated端子柱长度3.18 [0.125]
接触镀层厚度Flash触点材料 - 镀层热塑性
外壳与棱镜材料否外壳尺寸，连接器布局2 (DA, A)

产品信息

备注All receptacles are preloaded with size 20 DF posted socket contacts类型D-Subminiature
连接器性别SKT系列HD-20
可密封否制造商全称AMP
预装是产品子类型连接器
其他规格锌

环境参数

工作温度-55°C ~ 105°C封装热阻1.57 – 2.36 mm [ .062 – .093 in ]
