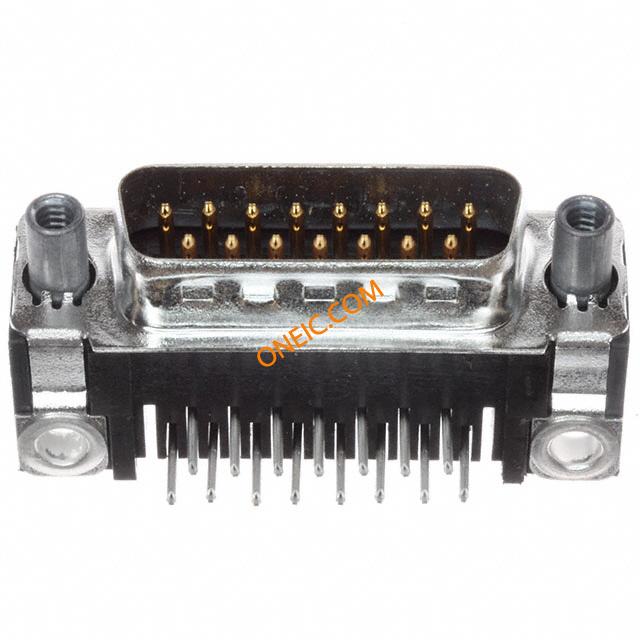

5747236-6

点击放大查看

5747236-6

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors A15P RA318 Standard Board Mount Connectors CONN D-SUB PLUG R/A 15POS Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:15 PositionsHousing Gender = PlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;15Pos;RTAng;HD-20Series;20AWG;FrontMetalShell 15 MSFL PLUG RA 318 (SL,FM)
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量104

合规参数

RoHSRoHS Compliant抗辐射加固No
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
连接器阻抗母端螺钉锁，固定最大额定电流6A

机械参数

颜色Black深度18.62 mm
间距2.74 mm高度12.55 mm
密封型No外形尺寸(长x宽)2
包装方式Tray壳体颜色黑色
引脚样式Round外壳尺寸2
端接方式Solder触头类型Signal
柱间距.108外壳表面处理铜镀锡
第二连接器With触点形状Round
安装类型Through Hole外壳镀层Tin
连接器类型Plug, Male Pins接触镀层Gold
法兰特征Mating Side; Female Screwlock (4-40)接地类型With
尖端材料（笔尖）Tin安装样式Through Hole
排数2壳体镀层锡
外壳材料（壳体）Steel电路板厚度0.093 [2.36]
连接器样式D-Sub插入件材料黄铜
锁定特性Female Screwlocks, Fixed磁芯材质黄铜
外形（宽 x 高）Standard触头材料Brass
壳体材料Thermoplastic总长度39.14 mm
安装特性安装孔包装数量104
面板安装类型Without尺寸/外形0.66 [.026]
接地凹痕With外形尺寸 长x宽x高8.08 [.318]
端接样式Through Hole连接器颜色None
外径.66 mm [ .026 in ]触点数15
位数15外壳尺寸-插件Front Metal Shell
端子螺钉表面处理透明铬酸盐安装孔直径3.18 [.125]
外壳材料及表面处理Steel, Tin Plated端子柱长度3.18 [0.125]
接触镀层厚度Flash螺钉材料 - 镀层Clear Chromate
触点材料 - 镀层锌外壳与棱镜材料否
外壳尺寸，连接器布局2 (DA, A)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别PIN系列HD-20
产品特性Ground Strap, Grounding Indents可密封否
预装是产品子类型连接器
端口数1 Port

环境参数

工作温度-55°C ~ 105°C封装热阻1.57 mm [ .062 in ]
