点击放大查看

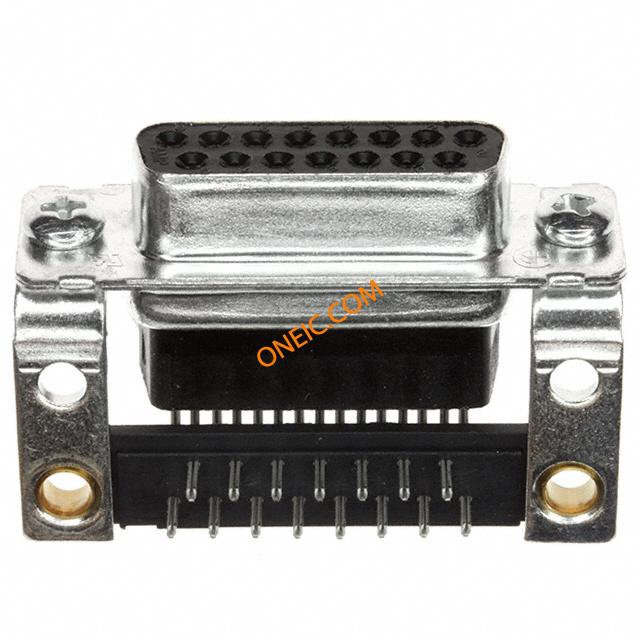

5745113-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors DSUB A15S RA545 Standard Board Mount Connectors CONN DSUB RCPT 15POS T/H RA GOLD Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 15 RCPT RA/MS STD |
| 分类 |
商业参数
| 其他名称 | A32151 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 112 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 连接器阻抗 | 安装螺钉, 安装螺钉 | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 深度 | 26.23 mm |
| 间距 | 2.74 mm | 高度 | 12.54 mm |
| 密封型 | No | 外形尺寸(长x宽) | 2 |
| 包装方式 | Tray | 引脚样式 | 直角 |
| 外壳尺寸 | 2 | 端接方式 | Solder |
| 触头类型 | Signal | 柱间距 | .108 |
| 外壳表面处理 | 锡 | 第二连接器 | With |
| 触点形状 | Square | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Standard Screws (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.093 [2.36] | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Screws |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA), Nylon, Glass Filled | 总长度 | 39.14 mm |
| 安装特性 | 安装孔 | 包装数量 | 112 |
| 面板安装类型 | Without | 尺寸/外形 | 0.64 [.025] |
| 接地凹痕 | Without | 外形尺寸 长x宽x高 | 13.84 [.545] |
| 端接样式 | Through Hole | 连接器颜色 | None |
| 外径 | .64 mm [ .025 in ] | 触点数 | 15 |
| 位数 | 15 | 外壳尺寸-插件 | Full Metal |
| 安装孔直径 | 3.05 [.120] | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 3.18 [0.125] | 接触镀层厚度 | Flash |
| 触点材料 - 镀层 | 热塑性 | 外壳与棱镜材料 | 否 |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 备注 | All receptacles are preloaded with size 20 DF posted socket contacts | 类型 | D-Subminiature |
| 连接器性别 | SKT | 系列 | HD-20 |
| 产品特性 | Mounting Brackets | 可密封 | 否 |
| 制造商全称 | AMP | 预装 | 是 |
| 产品子类型 | 连接器 | 端口数 | 1 Port |
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 mm [ .093 in ] |
