点击放大查看

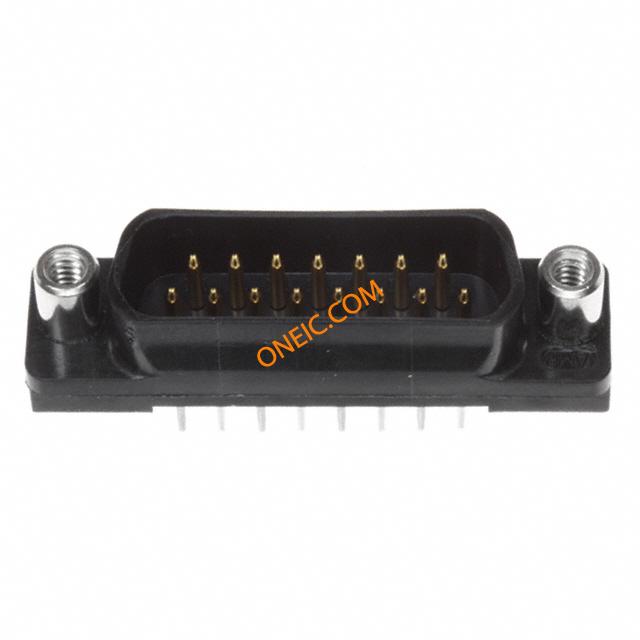

5745072-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors DSUB A15P V/MNT Standard Board Mount Connectors CONN D-SUB PLUG STR 15POS PCB AU Conn D-Subminiature PIN 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15PlugPCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub HD-20 PLUG 15P VERT FFSCRLK |
| 分类 |
商业参数
| 其他名称 | A34028 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 13 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 连接器阻抗 | 母端螺钉锁，固定 | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 深度 | 10.41 mm |
| 间距 | 2.74 mm | 高度 | 12.09 mm |
| 密封型 | No | 外形尺寸(长x宽) | 2 |
| 包装方式 | Tube | 屏蔽 | 否 |
| 壳体颜色 | 黑色 | 引脚样式 | Round |
| 外壳尺寸 | 2 | 端接方式 | Solder |
| 触头类型 | Signal | 柱间距 | .109 |
| 第二连接器 | With | 触点形状 | Round |
| 安装类型 | Through Hole | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Female Screwlock (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 电路板厚度 | 0.093 â 0.125 [2.36 â 3.18] |
| 连接器样式 | D-Sub | 插入件材料 | 黄铜 |
| 锁定特性 | Female Screwlocks, Fixed | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 总长度 | 39.14 mm | 安装特性 | 安装孔 |
| 包装数量 | 13 | 面板安装类型 | Without |
| 尺寸/外形 | 0.66 [.026] | 接地凹痕 | Without |
| 端接样式 | Through Hole | 连接器颜色 | None |
| 外径 | .66 mm [ .026 in ] | 触点数 | 15 |
| 位数 | 15 | 外壳尺寸-插件 | All Plastic |
| 端子螺钉表面处理 | 镀镍铜薄层 | 安装孔直径 | 3.05 [.120] |
| 端子柱长度 | 4.32 [0.170] | 接触镀层厚度 | Flash |
| 螺钉材料 - 镀层 | Brass | 外壳与棱镜材料 | 是 |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 可密封 | 否 | 制造商全称 | AMP |
| 预装 | 是 | 产品子类型 | 连接器 |
| 端口数 | 1 Port | 其他规格 | 否 |
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 – 3.18 mm [ .093 – .125 in ] |
