点击放大查看
521780-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 5 POS 7.11mm Crimp ST Cable Mount Loose Piece Positive Lock Connectors CONN RCPT HSG 5POS .250 NATURAL Pluggable Terminal Blocks POSI LOCK HSG MKIII Conn Housing RCP 5 POS 7.11mm Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IIIReceptacle Style = StraightPackaging Method = Loose PieceSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, CONNECTOR, PLUG, POSITIVE LOCK, 5WAY Housing,Receptacle,PositiveLock,5Position 5 Position 7.12mm Straight Style Positive Lock Receptacle PL MKIII 250 REC HSG 5P NYLON NAT |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 其他名称 | 5217801 |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
机械参数
| 颜色 | Natural | 深度 | 24.91 mm |
| 间距 | 7.11 mm | 高度 | 17.78 mm |
| 重量 | 0.02 | 材料（通用） | Nylon 6/6 |
| 按键颜色 | None | 包装方式 | Bulk |
| 插片宽度 | 6.35 [.250] | 极化 | Yes |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 端子尺寸 | 0.250" (6.35mm) | 端子类型 | Quick Connect, Disconnect |
| 排数 | 1 | 连接器样式 | Straight |
| 壳体材料 | Nylon | 总长度 | 7.11 [0.280] |
| 包装数量 | Loose Piece | 主要材料 | InterconnectSystem |
| 触点数 | 5 | 堆叠方向 | Side to Side |
| 位数 | 5 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | :Positive Lock Mark III | 编码、键控 | No |
| 制造商全称 | PositiveLock | 产品子类型 | Receptacle Housing |
| 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects | ||
相关型号
1217092-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Positive Lock Connectors CONN UNINS RCPT 12-16AWG 0.250 Headers & Wire Housings 250 POSI-LOCK RCPT 0157 TPBR Quick Disconnect Terminal 12-16AWG F 19.58mm 7.62mm Tin Strip Quick Disconnect Terminal 12-16AWG F 19.58mm 7.62mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IIIReceptacle Style = StraightWire Range = 1.25-3.00² [16-12] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PL 250 TERMINAL REC 16-12 AWG TPBR

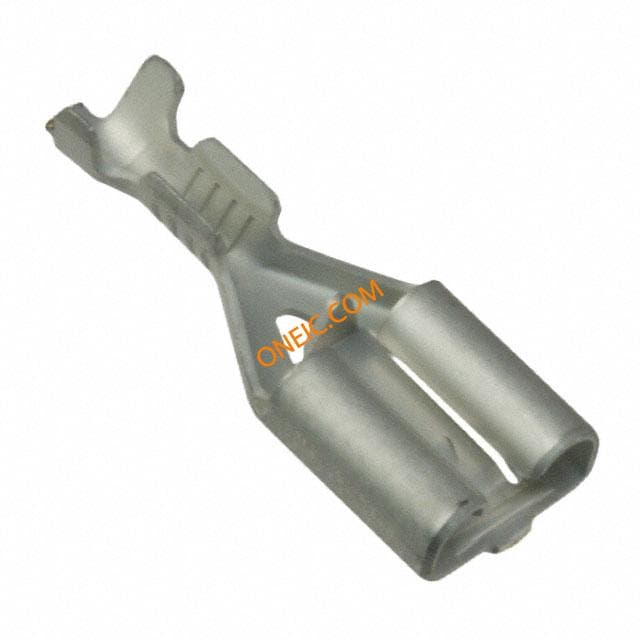

63933-2
