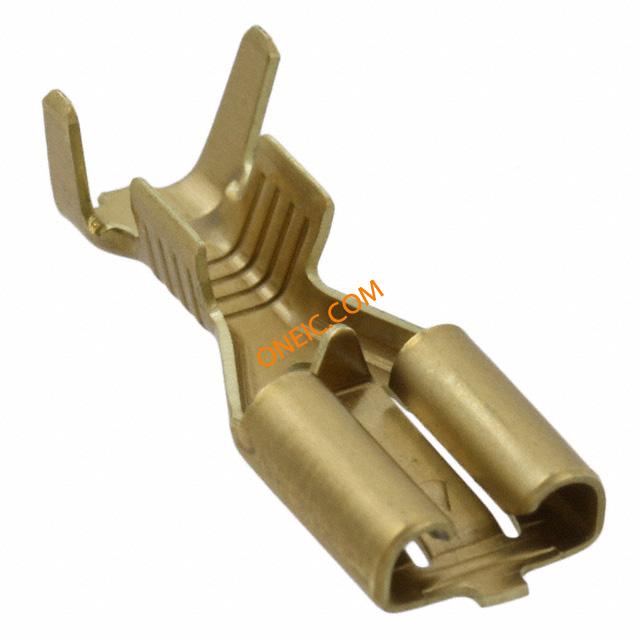

点击放大查看
1217092-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | 250 POSI-LOCK RECPT 0157 BR Positive Lock Connectors CONN UNINS RCPT 12-16AWG 0.250 Positive Lock Connectors Product Highlights:ContactContact Gender = ReceptacleTab Fit = 6.35 x 0.81 mmTerminate To WireLine = Mark IIISearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, CONN QC RCPT 12-16AWG 0.250 PL 250 TERMINAL RECEPTACLE 16-12 AWG BR |
| 分类 |
商业参数
| 其他名称 | A110900CT | 标准包装规格 | 10,000 |
| 标准包装数量 | 40,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | ||
机械参数
| 表面处理 | None | 材料（通用） | Brass |
| 按键颜色 | None | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | 分离式导线 |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.293" (7.44mm) |
| 导线线规 | 12-16 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆材料 | Stranded |
| 连接器类型 | No | 接触镀层 | 无镀层 |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 插入件材料 | 黄铜 | 插入力 | 低 |
| 触头材料 | Brass | 总长度 | Mark III |
| 包装数量 | Strip | 导线端接方式 | No |
| 端接样式 | 母端 | 适用端子尺寸 | 3.05 – 4.3 mm [ .12 – .169 in ] |
| 绝缘直径 | 3.05-4.32 [.120-.170] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - mm² | 1.25-3.00² [16-12] |
| 外径-未扩张 | 4.3 mm [ .169 in ] | ||
产品信息
| 备注 | Also accepts wire combo's. | 连接器性别 | Female |
| 编码、键控 | No | 产品子类型 | Receptacle |
