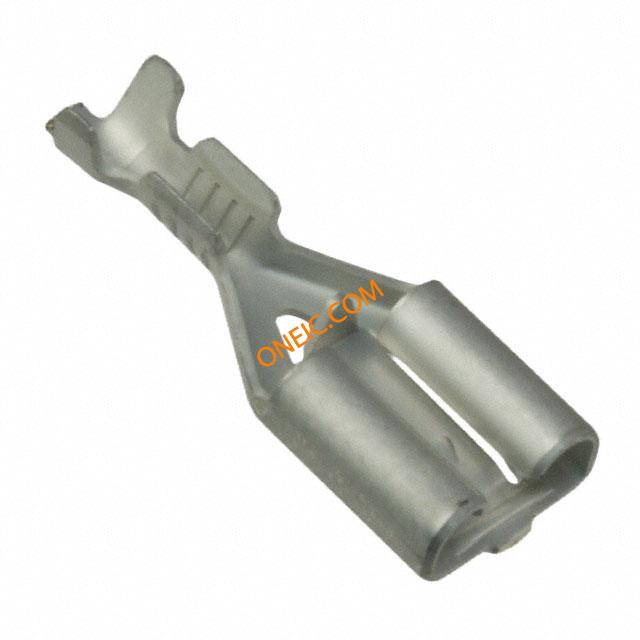

63933-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG F Tin Strip Positive Lock Connectors CONN RCPT .250 22-18AWG TIN Headers & Wire Housings REC 250 POS LOC 22-18 0157TPBR Positive Lock Connectors Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IIIReceptacle Style = StraightWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, 22-18 AWG 6.35 x 0.81 mm Straight Receptacle Positive Lock Connector PL .250 TERMINAL REC 22-18 AWG TPBR |
| 分类 |
商业参数
| 其他名称 | A100910CT | 标准包装规格 | 12,000 |
| 标准包装数量 | 12,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | ||
机械参数
| 表面处理 | Tin | 材料（通用） | Brass |
| 按键颜色 | None | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | 分离式导线 |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.293" (7.44mm) |
| 导线线规 | 18-22 AWG | 端接方式 | Crimp |
| 引脚间距 | 0.293" (7.44mm) | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆材料 | Stranded | 连接器类型 | Standard |
| 接触镀层 | Tin | 安装样式 | Wire |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 插入件材料 | 黄铜 | 插入力 | 低 |
| 触头材料 | Brass | 总长度 | Mark III |
| 包装数量 | Strip | 导线端接方式 | No |
| 端接样式 | Crimp | 适用端子尺寸 | 1.52 – 2.8 mm [ .06 – .11 in ] |
| 触点数 | 4 | 绝缘直径 | 1.52-2.54 [.060-.100] |
| 绝缘材料 - 类型 | No | 总厚度 | .41 mm [ .016 in ] |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - mm² | 0.30-0.90² [22-18] | 外径-未扩张 | 2.8 mm [ .11 in ] |
产品信息
| 连接器性别 | Female | 系列 | Mark III, AMP |
| 编码、键控 | No | 产品子类型 | Receptacle |
